Automatic Solder Paste Printer for Industrial 4.0 MES System
Specification
| Model | G9+ |
| Max PCB Size | 450x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Max board weight | 5kg |
| Transport height | 900±40mm |
| Board edge gap | 2.5mm |
| Board height | 15mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, program control |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/manual up-down table |
| PCB clamping system |
Patented over the top clamping
|
| Side clamping | |
| Adsorption function | |
| Print snap-off |
0-20mm
|
|
Print mode
|
one/twice
|
|
Print Speed
|
10-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
| Print pressure | 0.5-10kg |
| Template fram size | 470*370mm~737*737mm(20-40thickness) |
|
Cleaning System
|
Droops of rain type cleaning system
|
| Reinforced vacuum absorption | |
| Dry, wet vacuum three modes | |
| Back and forth cleaning | |
|
CCD FOV
|
10x8mm
|
| Fiducial mark types | Standard Fiducial mark shape |
| Pad | |
| Hole | |
| Camera system | Look up/down optics structure |
| CCD digital camera | |
| Geometry pattern match |
Features
1.The CCD digital system boasts a revolutionary optical path design, delivering uniform circular lighting and bright coaxial illumination with infinitely adjustable brightness. This enables seamless recognition of diverse mark points, even on uneven tin-plated, copper-plated, silver-plated surfaces, hot-air soldering points, and various colored FPCs and PCBs.

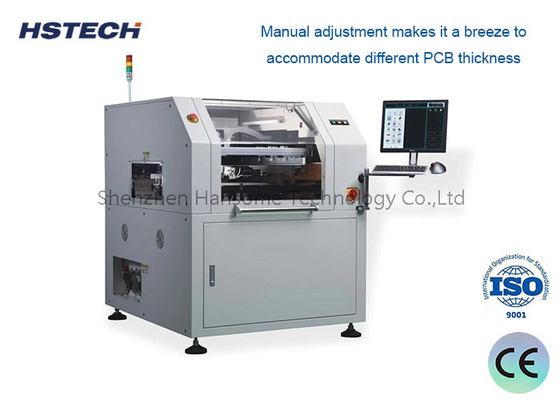

2.The system features high-precision PCB thickness adjustment and a sturdy structure ensuring stable XY movement, making manual adjustments for different PCB thicknesses straightforward.

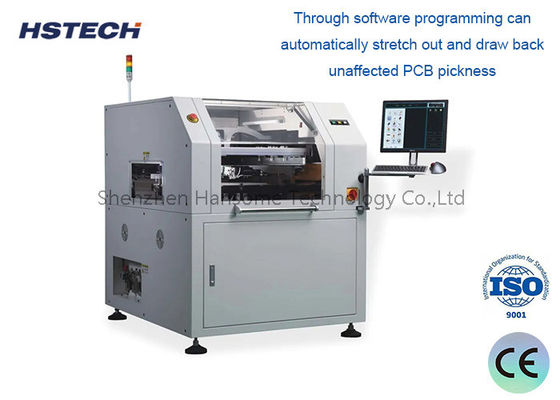

3.The guide rail positioning system includes a detachable, innovative pattern guide rail and a programmable, flexible side clamp tailored for FPCs and warped PCBs. A unique clamping plate device, controlled by software, automatically adapts to various PCB thicknesses.
4.The squeegee structure design incorporates an advanced squeegee system, enhancing stability and prolonging the squeegee's life.
5.The high-speed stencil cleaning system features a downward dispensing cleaning structure, preventing clogged openings and ensuring effective cleaning. The solvent dispense length is easily adjustable via software.
6.The new multi-function interface is user-friendly, intuitive, and offers real-time temperature and humidity monitoring.
