| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Features
1.Robust Construction Utilizing Stainless Steel: Crafted with a sturdy stainless steel framework, this equipment guarantees durability and stability, making it perfectly suited for demanding industrial environments.
2.Adjustable Hand Crank for Enhanced Versatility: The hand crank mechanism offers the versatility to effortlessly adjust the width, accommodating a wide range of workpiece sizes.

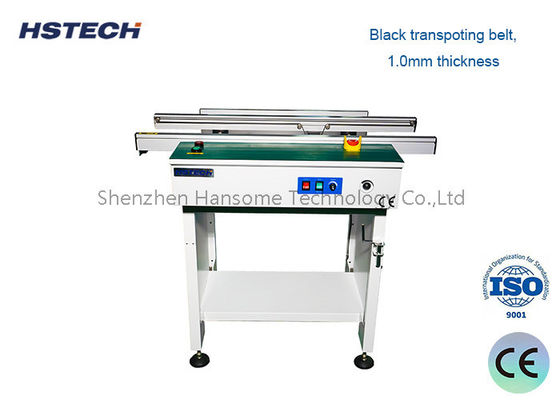

3.Heavy-Duty Black Transport Belt: Equipped with a 1.0mm thick black transport belt, this equipment ensures smooth and reliable material handling.
4.Sturdy yet Lightweight Aluminum Alloy Rails: The aluminum alloy transport rails are both lightweight and durable, facilitating smooth material movement and enhancing both efficiency and durability.
5.User-Friendly LED Button Control with Variable Speed Adjustment: Precision speed control is achieved through user-friendly LED buttons, allowing operators to optimize motor speed for optimal performance.
6.Optional Features for Tailored Capabilities: A range of optional features, including tower lights, inspection systems, and dust covers, can be integrated to cater to specific application requirements.
7.Customized Solutions: We provide bespoke designs tailored to unique customer needs, ensuring seamless integration of the equipment into your production processes.

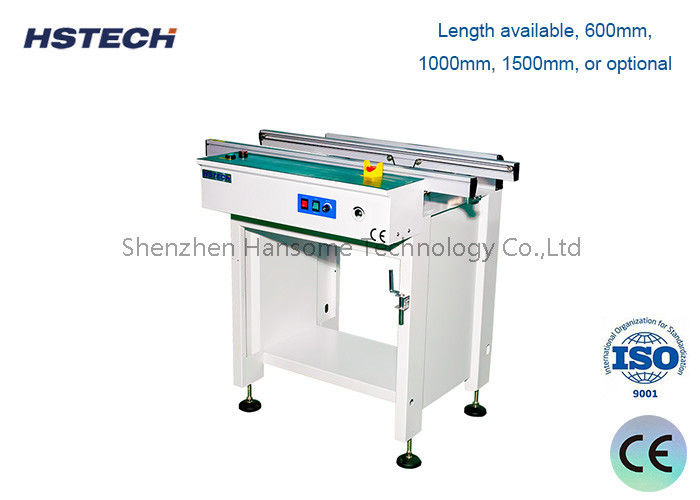

8.Flexible Length Configurations: Available in various lengths such as 600mm, 1000mm, and 1500mm, or customizable to your specifications, this equipment ensures a perfect fit for your production line.
9.SMEMA Signal Compatibility for Efficient Integration: Designed with SMEMA signal compatibility, this equipment enables seamless inline connection, facilitating automated and efficient production line integration.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
