| Brand Name: | HSTECH |
| Model Number: | HS-5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

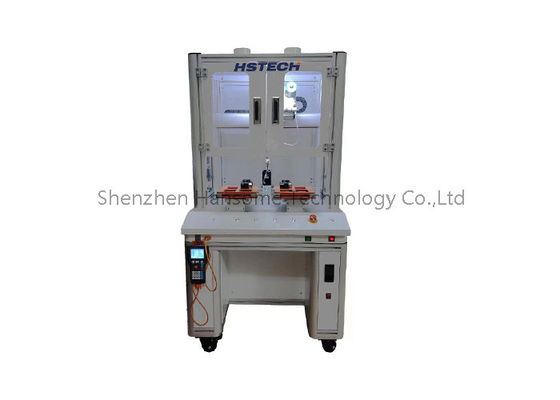

Crafted with a sturdy metal frame, this machine is durable for tough work environments. It features a dual soldering iron system for simultaneous top and bottom soldering, boosting efficiency. The handheld programmer simplifies robot control and customization. Heating and tin controllers maintain consistent temperature, preventing defects. The solder pen and precision tip handle meticulous tasks, while the tin out components and cleaning box keep the workspace organized. Ideal for electronics, automotive, medical, and aerospace, this Five-Axis Automatic Soldering Robot minimizes manual intervention and maximizes productivity. Invest for reliable, efficient soldering.
| Features | Description |
|---|---|
| Soldering Machine Soldering Machine Type | Automatic Soldering Robot |
| Soldering Iron Tin | Single |
| Machine Body | Metal Structure |
| Specification | Model: HS-S5331R/HS-S6331R, Voltage: AC110V/220V,50/60Hz, X/Y1/Y2/Z working range: 500*300*300*100mm/600*300*300*100mm, R axis: 360degree, X/Y/Z moving speed: max 300mm/s, Driven system: Stepper motor,timing belt, Linear guide: Taiwan brand high precison guide, Repeat accuracy: ±0.02mm, Programing: Teach pendant, Control system: Control board, Program storage: It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points), File storage space: Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points), Document support: CAD, Iron Tin cleaning: Air cleaning/pneumatic, External interface: USB+RS232, Soldering method: Point/drag soldering, Weight: 65kg/70kg, Machine dimension: 715*585*800mm/815*685*800mm |
| Main Machine Configuration | Double soldering Iron, double Y working platform, Handheld teach pendant programmer, Heating controller, Broken tin controller, Solder pen assembly, Welding tip, Tin out components, Cleaning box |
| Usage | Pcb Soldeing,Welding,Circuit Board Soldering |
| Product Category | Automatic Soldering Robot |
| Platform | Double Y Working Platform |
| Linear Guide | Hiwin |

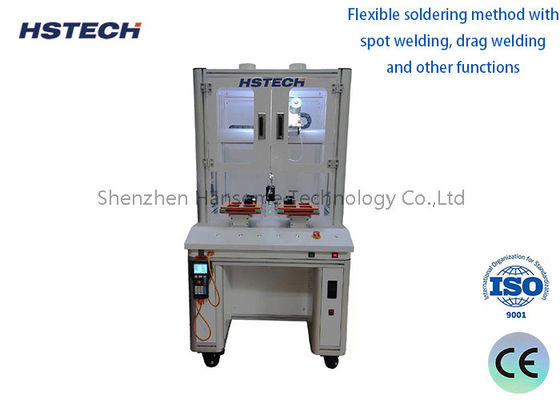

Introducing the HS-5331R, a dual-platform, 5-axis automatic soldering machine with an R rotation axis for flexibility and precision. Its standard travel range is customizable, and its single soldering iron can be upgraded. Supports point and drag welding for diverse applications. Features include teach pendant programming, CAD import, Hiwin linear guides, stepper motor control, and a double Y platform. Comes with double soldering irons, programmer, controllers, solder pen, tip, tin out components, and cleaning box. CE-certified, made in China. MOQ is one set, with various payment options. Supplies 200 pcs/month, ships in 5~7 days, protected packaging. Pricing is negotiable.
The Automatic Soldering Robot includes comprehensive technical support and services to help users fully leverage its capabilities. Our expert team is readily available for installation, setup, and configuration assistance. We also provide training to ensure users can operate the robot efficiently and utilize its features effectively. Our technical support team stands ready to troubleshoot and resolve any issues that may arise. Our dedication to customer satisfaction guarantees that you'll receive the necessary support and service to optimize your Automatic Soldering Robot experience.
Product Packaging:
Shipping:
Q: What is the brand name of this automatic soldering robot?
A: The brand name of this automatic soldering robot is HSTECH.
Q: What is the model number of this automatic soldering robot?
A: The model number of this automatic soldering robot is HS-5331R.
Q: Is this automatic soldering robot certified?
A: Yes, this automatic soldering robot is certified with CE.
Q: Where does this automatic soldering robot come from?
A: This automatic soldering robot comes from China.
Q: What is the minimum order quantity for this automatic soldering robot?
A: The minimum order quantity for this automatic soldering robot is 1 set.
Q: What are the accepted payment terms for this automatic soldering robot?
A: The accepted payment terms for this automatic soldering robot are D/P, T/T, Western Union, and MoneyGram.
Q: What is the supply ability of this automatic soldering robot per month?
A: The supply ability of this automatic soldering robot is 200 pcs per month.
Q: How long is the delivery time for this automatic soldering robot?
A: The delivery time for this automatic soldering robot is 5~7 work days.
Q: How is this automatic soldering robot packaged?
A: This automatic soldering robot is packaged in a wooden package, with foam inside.
Q: Is the price negotiable for this automatic soldering robot?
A: Yes, the price for this automatic soldering robot is negotiable.
