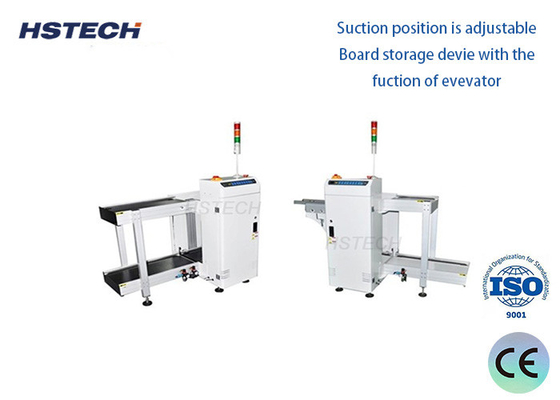

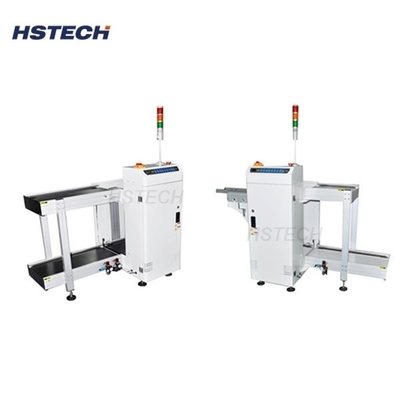

Panasonic PLC PCB Loader for the start of SMT Prouction Line
Application
This machine serves as the initial component in the SMT production line, facilitating the transfer of PCBs from the magazine to the conveyor belt of the subsequent machine.
A PCB (Printed Circuit Board) loader plays a vital role in the PCB assembly process. It is engineered to automatically feed unpopulated PCBs onto a production line or into a specific machine, like a pick-and-place machine or a soldering system.
Features
Control via true color touch screen
Utilizes Mitsubishi PLC
Magazine capacity: 1 on top, 1 on bottom, or customizable
Selectable pitch options: 10mm, 20mm, 30mm, 40mm
PCB transport direction: Left-to-Right (L-R) or Right-to-Left (R-L), optional
Manual or Automatic run mode selection available
Front rail fixed or rear rail fixed, optional configuration
Standard height for SMT applications: 920±20mm
Tower light display for status indication
SMEMA signal compatibility
Specification
| Model | HS-250LD | HS-330LD | HS-390LD | HS-460LD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 920±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| Weight | Approx 140kg | Approx 180kg | Approx 220kg | Approx 230kg |
Benefits
Improved Production Efficiency: Reduces downtime associated with manual loading, allowing for a smoother workflow.
Consistency: Provides a consistent and reliable method of loading PCBs, reducing the risk of damage or misalignment.
Labor Savings: Minimizes the need for manual labor, allowing workers to focus on other critical tasks.
