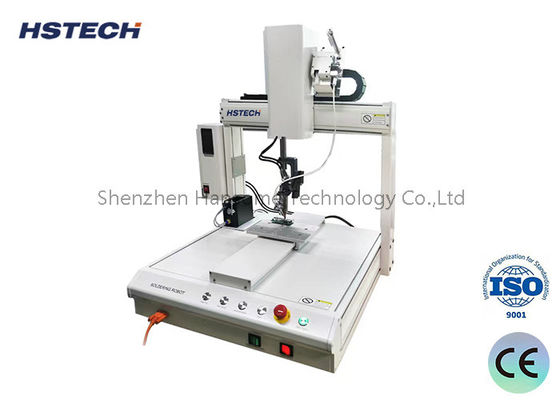

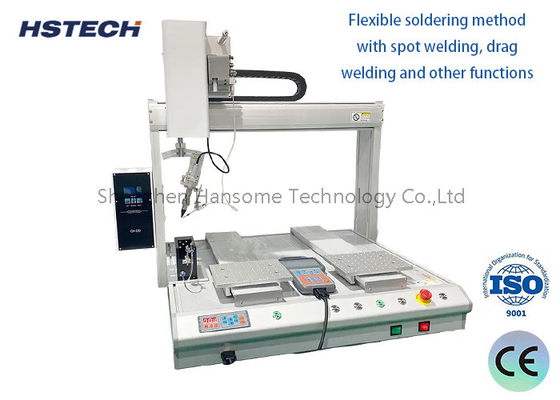

Desktop Soldering Machine Manual Teaching Box with Hiwin Linear Guide Brand
Introduction:
This automatic desktop soldering machine is a highly popular product that utilizes a teaching box for manual programming. It employs high-quality stepper motors and timing belts to drive the machine. The machine comes with options for either a single or double workstation, and its standard travel range is 300*300mm, which can be customized to meet specific customer product requirements.
Application:
1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
Features:
This machine operates with 4 axes: X/Y/Z movements and R rotation, enabling multi-angle soldering.
The machine features an automatic cleaning function and uses a soldering iron/tip without nitrogen, ensuring safety and environmental protection.
The moving system incorporates Taiwan-brand Hiwin linear guides, ensuring high precision and accuracy.
The machine control system utilizes a mature control board and is also compatible with PLC.
By using the iron head as a base point to align the product's key position and pressing the enter key, the system automatically generates this point, allowing for subsequent data setting.
The machine employs a high-precision stepper motor and timing belt-driven system, combined with advanced motion control algorithms, to enhance motion positioning accuracy and repeatability.
The automatic cleaning function stabilizes the solder processing and extends the lifespan of the soldering iron.
Programming is straightforward, precise, and easy to learn with the handheld LCD teaching pendant.
Specification:
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension | 520*585*800mm |
