| Brand Name: | HSTECH |
| Model Number: | HS-P223 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

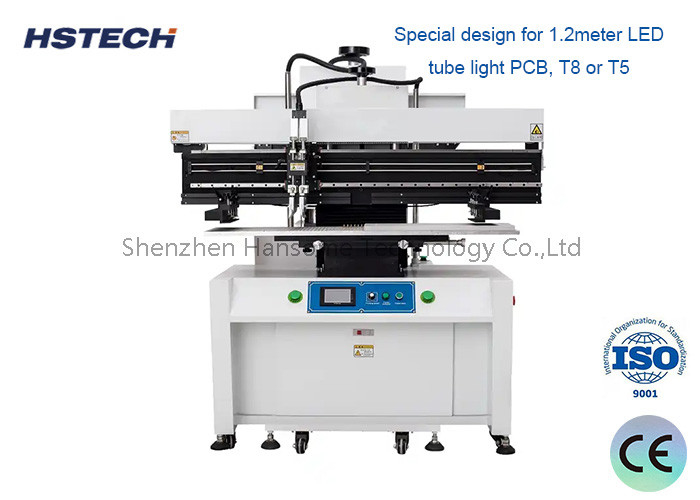

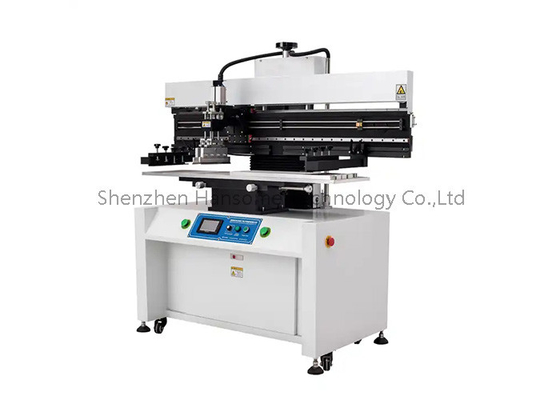

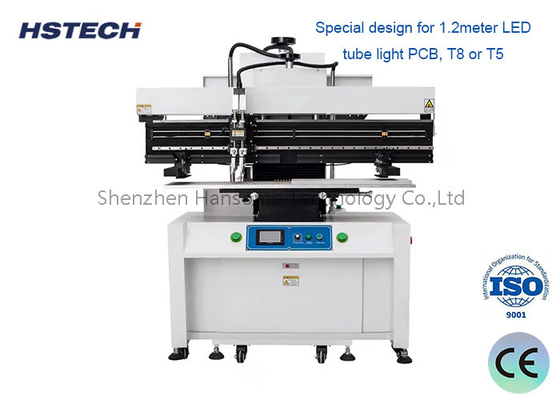

Semi-auto Operation 1.2M LED Tube PCB Solder Paste Stencil Printing Machine
Introduction
This semi-automatic solder paste printing machine is designed for printing on 1.2-meter LED tube PCBs. It features manual loading and automatic printing, making it a suitable precursor to the pick and place machine in the production process.
Specification
| Model | HS-P223 |
| Product name | Semi-automatic stencil printer |
| Max PCB size | 1200x320mm |
| Printing table size | 1300x350mm |
| Stencil frame size | 470x370~2000x550mm |
| Printing accuracy | ±0.02mm |
| PCB thickness | 0.2~2.0mm |
| Squeegee speed | 0-100mm/s |
| Repeat accuracy | ±0.02mm |
| Power supply | AC220V/110V, 50/60Hz |
| Machine power | 100W |
| Air pressure | 5-7kg/cm³ |
| Machine size | 1680*900*1680mm |
| Machine weight | Approx350kg |
We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
