| Brand Name: | HSTECH |
| Model Number: | HS-5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

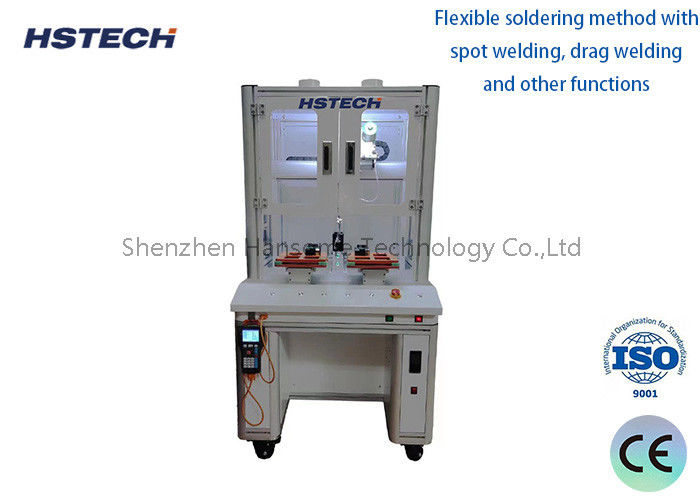

Crafted from a robust metal frame, this machine body is engineered to withstand the harshest work environments, guaranteeing long-lasting durability and reliability. Its main configuration highlights a dual soldering iron system that allows for simultaneous soldering on both the top and bottom of circuit boards, significantly enhancing efficiency and throughput.
The handheld teach pendant programmer offers user-friendly control over the robot's movements and settings, making programming and customization straightforward to meet individual needs. The heating and broken tin controllers operate in harmony to maintain a stable soldering temperature, preventing defects and ensuring peak performance.
The solder pen assembly and precision welding tip enable detailed and precise soldering and welding tasks, while the built-in tin disposal components and cleaning box keep the workspace tidy and organized. This automation solution is perfect for various industries, including electronics manufacturing, automotive, medical devices, and aerospace, catering to a multitude of soldering applications.
With an independent tin feeding axis, this Five-Axis Automatic Soldering Robot optimizes workflows, minimizing manual intervention and maximizing productivity. Invest in this dependable and efficient machine for all your soldering requirements and reap the rewards of automation in your production line.
| Features | Description |
|---|---|
| Soldering Machine Soldering Machine Type | Automatic Soldering Robot |
| Soldering Iron Tin | Single |
| Machine Body | Metal Structure |
| Specification | Model: HS-S5331R/HS-S6331R, Voltage: AC110V/220V,50/60Hz, X/Y1/Y2/Z working range: 500*300*300*100mm/600*300*300*100mm, R axis: 360degree, X/Y/Z moving speed: max 300mm/s, Driven system: Stepper motor,timing belt, Linear guide: Taiwan brand high precison guide, Repeat accuracy: ±0.02mm, Programing: Teach pendant, Control system: Control board, Program storage: It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points), File storage space: Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points), Document support: CAD, Iron Tin cleaning: Air cleaning/pneumatic, External interface: USB+RS232, Soldering method: Point/drag soldering, Weight: 65kg/70kg, Machine dimension: 715*585*800mm/815*685*800mm |
| Main Machine Configuration | Double soldering Iron, double Y working platform, Handheld teach pendant programmer, Heating controller, Broken tin controller, Solder pen assembly, Welding tip, Tin out components, Cleaning box |
| Usage | Pcb Soldeing,Welding,Circuit Board Soldering |
| Product Category | Automatic Soldering Robot |
| Platform | Double Y Working Platform |
| Linear Guide | Hiwin |
Introducing the versatile HS-5331R model, featuring dual platform operation and 5-axis functionality (including an R rotation axis) for enhanced flexibility and precision. With a customizable traveling distance of up to 500x300x300mm, this machine accommodates various product dimensions and supports upgrades to double or triple soldering irons. It supports multiple welding techniques like point and drag welding.
The HS-5331R simplifies manual point setting with a teach pendant programming feature and supports CAD imports. It uses premium Taiwan Hiwin linear guides for precision and stepper motor/timing belt control for intuitive operation. The double Y working platform design boosts versatility.
The comprehensive configuration includes double soldering irons, a teach pendant programmer, heating and tin controllers, solder pen assembly, welding tip, tin disposal, and cleaning box. CE-certified and made in China, the HS-5331R is reliable and efficient.
Minimum order is one set, with payment options like D/P, T/T, Western Union, and MoneyGram. With a supply capacity of 200 pcs/month and a 5~7-day delivery timeline, this machine is designed for quick integration. Shipped in a protective wooden package, pricing is negotiable based on customer requirements.
The Automatic Soldering Robot product comes with comprehensive technical support and services to ensure that users are able to maximize its capabilities. Our team of experts is always available to provide assistance with installation, setup, and configuration of the robot. We also offer training services to help users get up to speed with operating the robot and making the most of its features. Additionally, our technical support team is available to provide troubleshooting assistance and resolve any issues that may arise during use. With our commitment to customer satisfaction, you can rest assured that you will receive the support and service you need to get the most out of your Automatic Soldering Robot.
Product Packaging:
Shipping:
Q: What is the brand name of this automatic soldering robot?
A: The brand name of this automatic soldering robot is HSTECH.
Q: What is the model number of this automatic soldering robot?
A: The model number of this automatic soldering robot is HS-5331R.
Q: Is this automatic soldering robot certified?
A: Yes, this automatic soldering robot is certified with CE.
Q: Where does this automatic soldering robot come from?
A: This automatic soldering robot comes from China.
Q: What is the minimum order quantity for this automatic soldering robot?
A: The minimum order quantity for this automatic soldering robot is 1 set.
Q: What are the accepted payment terms for this automatic soldering robot?
A: The accepted payment terms for this automatic soldering robot are D/P, T/T, Western Union, and MoneyGram.
Q: What is the supply ability of this automatic soldering robot per month?
A: The supply ability of this automatic soldering robot is 200 pcs per month.
Q: How long is the delivery time for this automatic soldering robot?
A: The delivery time for this automatic soldering robot is 5~7 work days.
Q: How is this automatic soldering robot packaged?
A: This automatic soldering robot is packaged in a wooden package, with foam inside.
Q: Is the price negotiable for this automatic soldering robot?
A: Yes, the price for this automatic soldering robot is negotiable.
