| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

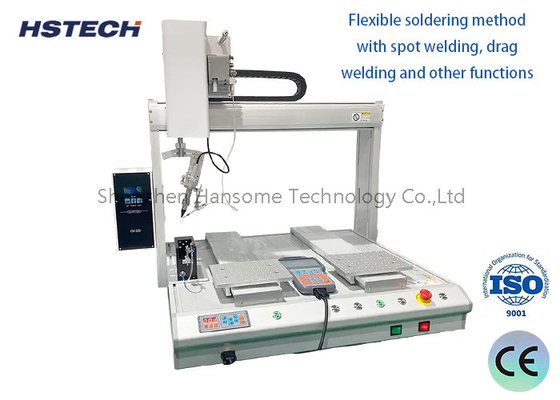

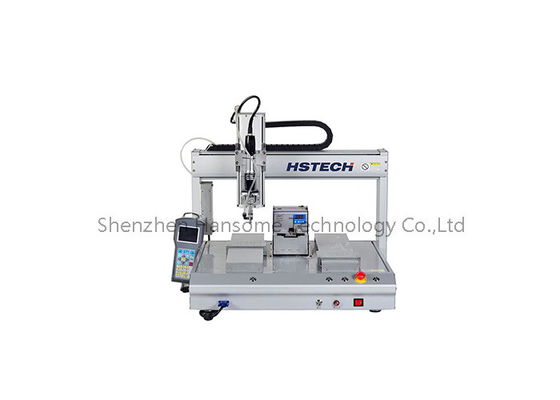

High Precision Solder Robot with Auto Cleaning & Iron Head Alignment
Introduction
The automatic desktop soldering machine, a highly demanded product, revolutionizes soldering processes through its innovative design. Featuring a user-intuitive teaching box for manual programming, this machine ensures seamless integration and tailored customization to fit diverse applications. Driven by high-quality stepper motors and timing belts, it offers precise and dependable motion control, thereby enhancing the overall performance and accuracy of soldering tasks.
At its core, versatility defines this machine, providing the option of a single or double workstation setup to meet varying production demands. With a standard workspace of 300x300mm, it is engineered to accommodate a broad spectrum of products, but its customization potential extends much further. Customers can request bespoke specifications to perfectly align with their unique product needs, ensuring optimal compatibility and functionality.
In summary, this automatic desktop soldering machine stands as the epitome of modern soldering technology, seamlessly blending advanced components, flexibility, and customization to yield unparalleled outcomes in the manufacturing sector.
Features
The machine boasts a sophisticated 4-axis operation, incorporating X/Y/Z linear movements along with R rotation, enabling multi-angle soldering capabilities that cater to diverse application needs.
Safety and environmental consciousness are paramount, as evidenced by the machine's automatic cleaning function. Operating without the need for nitrogen, the soldering iron/tip ensures both user safety and minimal environmental impact.
Precision and accuracy are hallmarks of this machine, thanks to the integration of Taiwan's renowned Hiwin linear guides within its movement system. These high-quality components guarantee seamless, high-precision operations.
A robust control system, built upon a mature control board, ensures reliable machine operation. For even greater versatility, the option to utilize PLC (Programmable Logic Controller) is also available, catering to specific control requirements.
Simplifying programming and setup, the machine employs an Iron head as the base point for aligning key product positions. By pressing the enter key, the system automatically generates and records this point, facilitating subsequent data entry and setup procedures, streamlining the entire process.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
