110V/220V Voltage Stainless Steel PCB Handling Equipment with Durable Black Belt and 1.0mm Thickness

Brand Name:	HSTECH
Model Number:	HS-460-CY
MOQ:	3 sets
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	500 pcs per month

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Conveyor

Other Name:

Link Conveyor

Color:

Blue,Grey,white

Transport Belt:

ESD Flat Belt

Belt Thickness:

1.0 Mm

Voltage:

1P AC 110V/220V 50/60HZ

Warranty:

1 Year

Packing:

Wrap, Wooden Box

Packaging Details:

Wooden box

Supply Ability:

500 pcs per month

Highlight:

Product Description

Stable Stainless Steel Manual Hand Crank Width Adjustable PCB Transporting Conveyor

Features

Built with a sturdy stainless steel frame for enhanced stability and longevity.
A hand crank is included for easy width adjustment, enabling precise customization.

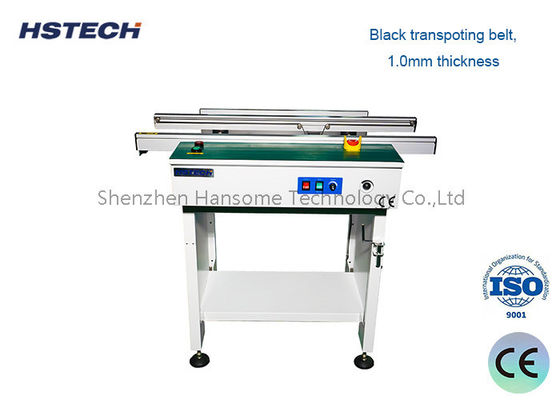

The machine features a durable 1.0mm thick black transport belt for smooth and efficient material handling.
Aluminum alloy transport rails add strength and ensure smooth operation.
LED button controls and a speed adjustment motor provide intuitive operation and precise control over conveyor speed.
Optional features like tower lights, inspection equipment, and dust covers can be added to tailor the machine to your needs.
Customized solutions are available to suit your unique application or process.

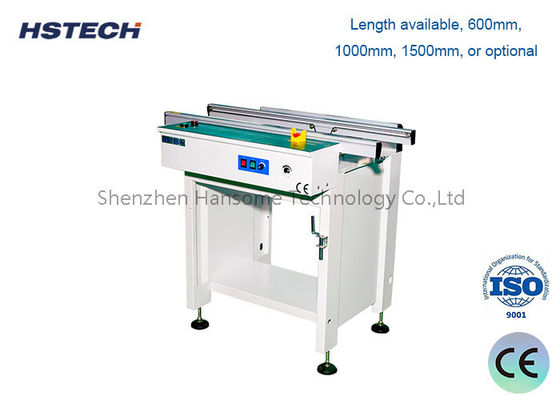

Lengths of 600mm, 1000mm, 1500mm, or custom sizes are available to fit your workspace or production line.
SMEMA signal compatibility allows seamless inline connection with other automation equipment.

Specification

Model		HS-C600/HS-C1000
Power Supply		AC220V or AC110V 50/60Hz
PCB Size		5050~500390mm
Width adjustment		Hand crank
PCB Direction		Left to right or right to left
Transmission Height		900 ± 20 mm
Transmission Speed		0.5-20 meters per minute adjustable
Track fixed side		front side fixed( or back side fixed for option)
Machine Length		0.5M/0.6M/0.8M/1M/1.5M
Options		Light,Fan,Magnnifying,Cover,Inspection
