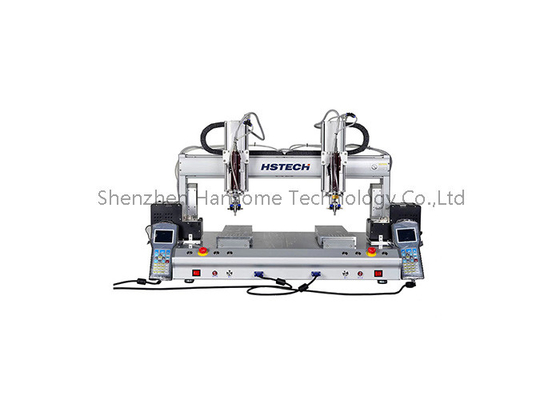

Precision Dual Platform Soldering Machine with Stepper Motor and Dual Operation Modes

Dual Platform 360 degree Solder Tip Tabletop Soldering Machine with Stepper motor,timing belt

Introduction:

This cutting-edge automatic soldering system features a dual-table design, utilizing a single soldering head equipped with two independently temperature-controlled soldering irons. Notably, it lacks a rotation function. However, it is perfect for both standard PCB board soldering and production line applications, as it leverages the simultaneous operation of two soldering irons to significantly boost soldering efficiency. Powered by a combination of air pressure and electricity, it uses a teach pendant box for intuitive, point-by-point manual programming, which then seamlessly transitions to automated soldering.

Key Features

Compact Tabletop Design:
Crafted for tabletop placement, this soldering machine is a perfect fit for cramped workshops, scientific laboratories, and streamlined production lines, maximizing space efficiency.

Precise Temperature Adjustability:
Offering versatile temperature settings, it enables users to fine-tune the soldering process according to the specific requirements of the solder material and electronic components.

Dual Operation Modes:
Combining the convenience of automatic soldering with the precision of manual control, this machine empowers users to tackle a wide range of tasks with ease and flexibility.

Versatile Soldering Tools:
Equipped with either a high-performance soldering iron or a hot air tool, it caters to diverse soldering techniques, enhancing overall productivity and versatility.

Comprehensive Safety Measures:
Boasting built-in safety features like automatic shut-off and thermal protection, it ensures a worry-free and secure soldering experience, safeguarding both users and equipment.

Intuitive User Interface:
Featuring a straightforward control panel or an advanced touchscreen interface, it provides a seamless user experience, making operation intuitive and hassle-free.

Benefits

Boosted Production Efficiency:
This system significantly accelerates production by facilitating rapid and uniform soldering of components, leading to a streamlined workflow and heightened productivity.

Precision-Oriented Soldering:
Delivering unparalleled accuracy, it minimizes the likelihood of damaging delicate electronic parts, ensuring the integrity and reliability of the final product.

Broad Application Scope:
Versatile in nature, it is ideal for diverse applications, spanning from creative prototyping and flexible small-batch production to intricate repairs and routine maintenance tasks.

Economical Investment:
As a compact tabletop solution, it presents a cost-effective alternative for small businesses and startups, offering advanced soldering capabilities without the hefty price tag of larger, industrial-scale automated systems.

Applications
Electronics Manufacturing:
Commonly used in the assembly of PCBs for consumer electronics, automotive components, and industrial equipment.
Prototyping:
Ideal for R&D environments where rapid prototyping and testing of circuits are required.
Repair Services:
Used in electronics repair shops for fixing or replacing components on malfunctioning devices.
Hobbyist Projects:
Popular among electronics enthusiasts for DIY projects and custom circuit designs.

Features:

1. Dual-Table Design with Dual-Iron Single Moving Head:
   This pioneering soldering system showcases a dual-table setup, complemented by a single moving head that houses two soldering irons, thereby maximizing workspace efficiency.

2. Independent Temperature Regulation for Each Iron:
   Each soldering iron boasts its own temperature controller, allowing for precise temperature adjustments tailored to individual soldering requirements.

3. Eco-Conscious Nitrogen-Free Soldering:
   By utilizing nitrogen-free soldering irons, this machine champions environmental sustainability while ensuring the safety of operators.

4. Versatile Multi-Directional Head Adjustment:
   The soldering head can be tilted using a radian fixture, enabling multi-directional adjustments to safeguard delicate PCB boards and components from unintended harm.

5. High-Precision Motion Control System:
   Powered by a high-precision stepper motor and timing belt drive, coupled with sophisticated motion control algorithms, this machine guarantees remarkable positioning accuracy and repeatability.

6. Integrated Automatic Cleaning Mechanism:
   The machine's built-in automatic cleaning feature bolsters soldering stability and prolongs the life of the soldering irons, thereby reducing maintenance expenses.

7. User-Friendly Handheld Teaching Pendant:
   The intuitive handheld teaching pendant facilitates easy programming, making it accessible and swift to learn, even for novices.

Specification:
