| Brand Name: | HSTECH |
| Model Number: | HS-5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
Crafted with a sturdy metal frame, this machine body is built to endure even the toughest work environments, ensuring longevity and reliability. Its comprehensive main configuration showcases a dual soldering iron system, enabling simultaneous soldering on both the top and bottom of circuit boards, thereby boosting efficiency and throughput.
The handheld teach pendant programmer offers intuitive control over the robot's movements and settings, simplifying programming and customization to suit individual requirements. The heating and broken tin controllers work in tandem to maintain a consistent soldering temperature, preventing defects and ensuring optimal performance.
The solder pen assembly and precision welding tip facilitate meticulous soldering and welding tasks, while the integrated tin out components and cleaning box maintain a clean and organized workspace. This automation solution is ideal for diverse industries, spanning electronics manufacturing, automotive, medical devices, and aerospace, catering to a wide range of soldering applications.
Boasting an independent tin feeding axis, this Five-Axis Automatic Soldering Robot streamlines workflows, minimizing manual intervention and maximizing productivity. Invest in this reliable and efficient machine for all your soldering needs, and experience the benefits of automation in your production line.
| Features | Description |
|---|---|
| Soldering Machine Soldering Machine Type | Automatic Soldering Robot |
| Soldering Iron Tin | Single |
| Machine Body | Metal Structure |
| Specification | Model: HS-S5331R/HS-S6331R, Voltage: AC110V/220V,50/60Hz, X/Y1/Y2/Z working range: 500*300*300*100mm/600*300*300*100mm, R axis: 360degree, X/Y/Z moving speed: max 300mm/s, Driven system: Stepper motor,timing belt, Linear guide: Taiwan brand high precison guide, Repeat accuracy: ±0.02mm, Programing: Teach pendant, Control system: Control board, Program storage: It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points), File storage space: Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points), Document support: CAD, Iron Tin cleaning: Air cleaning/pneumatic, External interface: USB+RS232, Soldering method: Point/drag soldering, Weight: 65kg/70kg, Machine dimension: 715*585*800mm/815*685*800mm |
| Main Machine Configuration | Double soldering Iron, double Y working platform, Handheld teach pendant programmer, Heating controller, Broken tin controller, Solder pen assembly, Welding tip, Tin out components, Cleaning box |
| Usage | Pcb Soldeing,Welding,Circuit Board Soldering |
| Product Category | Automatic Soldering Robot |
| Platform | Double Y Working Platform |
| Linear Guide | Hiwin |

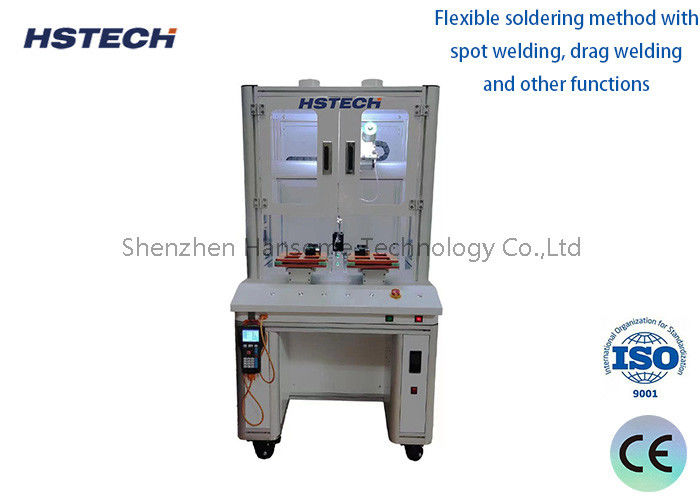

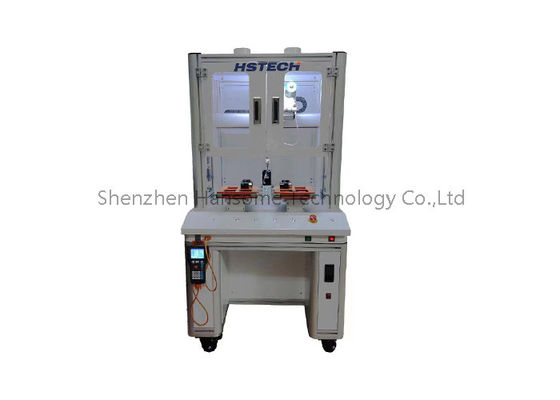

Introducing the versatile HS-5331R model, featuring dual platform operation and 5-axis functionality, including an R rotation axis, for enhanced flexibility and precision. With a standard traveling distance of 500300300mm, this machine's range can be tailored to suit individual customer specifications. Its single soldering iron's movement range is versatile, accommodating various product dimensions and offering the option to upgrade to double or triple soldering irons. This automatic soldering solution supports multiple welding techniques, such as point and drag welding, catering to diverse application needs.
Equipped with a teach pendant programming feature, the HS-5331R simplifies manual point setting and supports CAD drawing imports for seamless integration. It incorporates premium Taiwan Hiwin linear guides for precision movement and employs stepper motor and timing belt control for intuitive operation. The double Y working platform design facilitates work with diverse products and materials, enhancing its versatility.
The machine's comprehensive configuration includes double soldering irons, a handheld teach pendant programmer, heating and broken tin controllers, solder pen assembly, welding tip, tin out components, and a cleaning box. Proudly CE-certified and manufactured in China, the HS-5331R is a reliable and efficient addition to any production line.
Minimum order quantity is one set, with payment options including D/P, T/T, Western Union, and MoneyGram. With a supply capacity of 200 pcs per month and a delivery timeline of 5~7 working days, this machine is designed for swift integration. Shipped in a protective wooden package with foam lining, pricing is negotiable based on customer requirements and specific needs.
The Automatic Soldering Robot product comes with comprehensive technical support and services to ensure that users are able to maximize its capabilities. Our team of experts is always available to provide assistance with installation, setup, and configuration of the robot. We also offer training services to help users get up to speed with operating the robot and making the most of its features. Additionally, our technical support team is available to provide troubleshooting assistance and resolve any issues that may arise during use. With our commitment to customer satisfaction, you can rest assured that you will receive the support and service you need to get the most out of your Automatic Soldering Robot.
Product Packaging:
Shipping:
Q: What is the brand name of this automatic soldering robot?
A: The brand name of this automatic soldering robot is HSTECH.
Q: What is the model number of this automatic soldering robot?
A: The model number of this automatic soldering robot is HS-5331R.
Q: Is this automatic soldering robot certified?
A: Yes, this automatic soldering robot is certified with CE.
Q: Where does this automatic soldering robot come from?
A: This automatic soldering robot comes from China.
Q: What is the minimum order quantity for this automatic soldering robot?
A: The minimum order quantity for this automatic soldering robot is 1 set.
Q: What are the accepted payment terms for this automatic soldering robot?
A: The accepted payment terms for this automatic soldering robot are D/P, T/T, Western Union, and MoneyGram.
Q: What is the supply ability of this automatic soldering robot per month?
A: The supply ability of this automatic soldering robot is 200 pcs per month.
Q: How long is the delivery time for this automatic soldering robot?
A: The delivery time for this automatic soldering robot is 5~7 work days.
Q: How is this automatic soldering robot packaged?
A: This automatic soldering robot is packaged in a wooden package, with foam inside.
Q: Is the price negotiable for this automatic soldering robot?
A: Yes, the price for this automatic soldering robot is negotiable.
