| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Features
Sturdy Stainless Steel Construction: The equipment boasts a robust stainless steel framework that ensures durability and stability, suitable for demanding industrial environments.
Adjustable Hand Crank Width: Flexibility is key, with a hand crank mechanism that allows for easy width adjustments to accommodate various workpiece sizes.

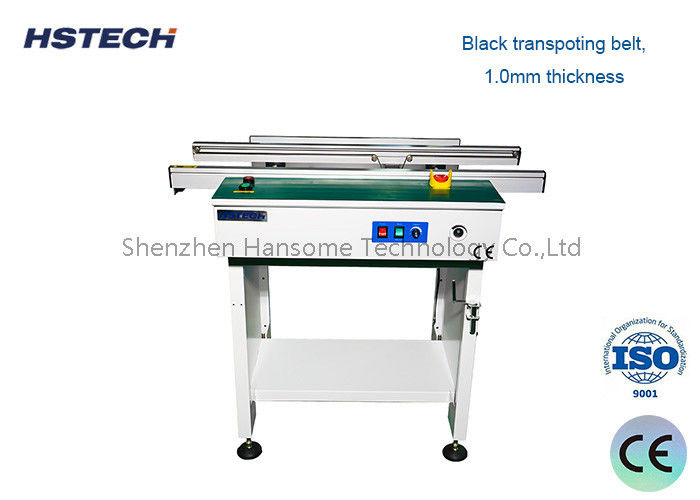

Heavy-Duty Black Transport Belt: Equipped with a 1.0mm thick, black transport belt, designed for smooth and reliable material handling.
Aluminum Alloy Transport Rails: Lightweight yet sturdy aluminum alloy rails facilitate seamless material movement, enhancing overall efficiency and longevity.
LED Button Control with Speed Adjustment: User-friendly LED buttons enable precise speed control, allowing operators to fine-tune the motor speed for optimal performance.
Optional Features for Enhanced Functionality: A range of optional features, including tower light, inspection systems, and dust covers, can be integrated to meet specific application requirements.
Customizable Solutions: We offer tailored designs to cater to unique customer needs, ensuring the equipment perfectly aligns with your production processes.

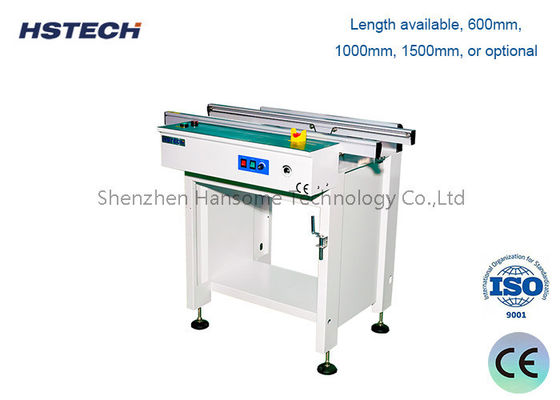

Versatile Length Options: Available in various lengths, including 600mm, 1000mm, 1500mm, or customizable to your specifications, ensuring a seamless fit into your production line.
SMEMA Signal Compatibility: Designed with SMEMA signal integration for seamless inline connection, facilitating automated and efficient production line integration.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
