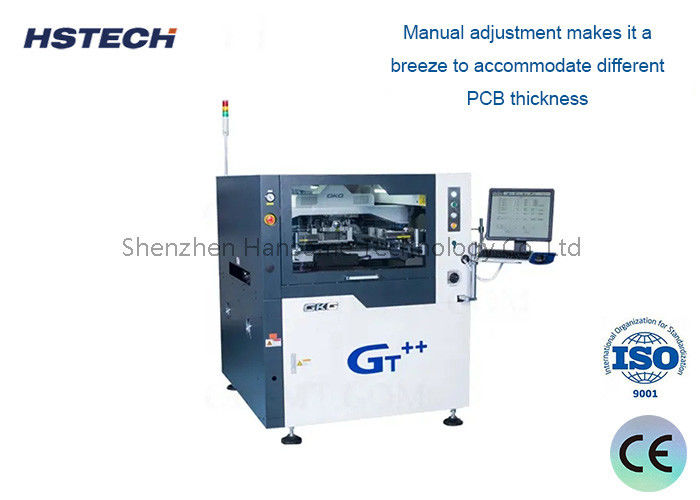

SMT Paste Printer with Magnetic Pin/Support Block & R-L Transport
Application
The G9+ Automatic Solder Paste Printing Machine represents the pinnacle of technology for high-end SMT applications. With a sleek GT++ BTB width of merely 2830mm, it adeptly fulfills the stringent demands of the printing process for components as minute as 03015 and pitches as fine as 2025, delivering both exceptional precision and remarkable speed.
Specification
| Model | G5 |
| Stencil size | 370x370mm(min size) |
| 737x737mm(max size) | |
| 20-40mm(thickness) | |
| Max PCB Size | 400x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| PCB warpage | max 1% PCB diagonal |
| Transport height | 900±40mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, can be adjustment |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/up-down table |
| PCB clamping system |
Patented over the top clamping/side clamping
|
| Print head |
Two independent motorised printheads
|
|
Squeegee Pressure
|
0.5~10Kg (Program Control)
|
|
Print Speed
|
6-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
|
Cleaning System
|
Ireinforced vacuum absorption ,dry ,wet, vacuum three modes
|
|
CCD FOV
|
8x6mm
|
| Machine adjust range |
X: ± 3mm, Y:± 7 mm , θ:± 2°
|
| Vision |
Look Up/Down Optics Structure/CCD/Geometry Pattern-match
|
Whole Machine Specification
|
Repeat Position Accuracy
|
±0.01mm
|
|
Printing Accuracy
|
±0.025mm
|
|
Cycle Time
|
＜8 Sec
|
|
Product Changeover
|
old:<3 mins,new:<5 mins |
|
Air supply
|
4~6 kgf/cm
|
| Power supply |
AC:220±10%,50/60HZ, 2.5KW
|
| Control method | PC |
| Operation system |
Windows XP/Win7
|
|
Machine Dimensions
|
1140(L) x 1364(W) x 1404 (H)mm
|
|
Machine Weight
|
Approx: around 1000Kg |
Features
The CCD digital system showcases a groundbreaking, all-new optical path design, integrating uniform circular illumination and an ultra-bright coaxial light source. This dual-light system offers unparalleled brightness adjustability, enabling seamless recognition of diverse marking points, including those on uneven surfaces or materials such as tin, copper, and silver platings, hot air soldering marks, FPCs, and a vast array of PCB colors.

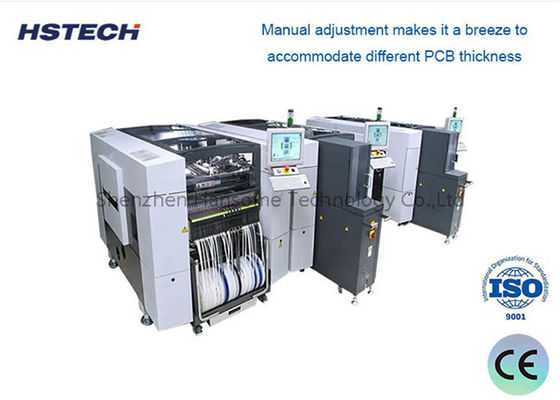

Boasting high-precision PCB thickness adjustment capabilities, the system features a robust structure that guarantees stable XY movements. Effortless manual adjustments cater to a wide range of PCB thicknesses, streamlining the process for maximum versatility and convenience.
