| Brand Name: | HSTECH |
| Model Number: | HS-S5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

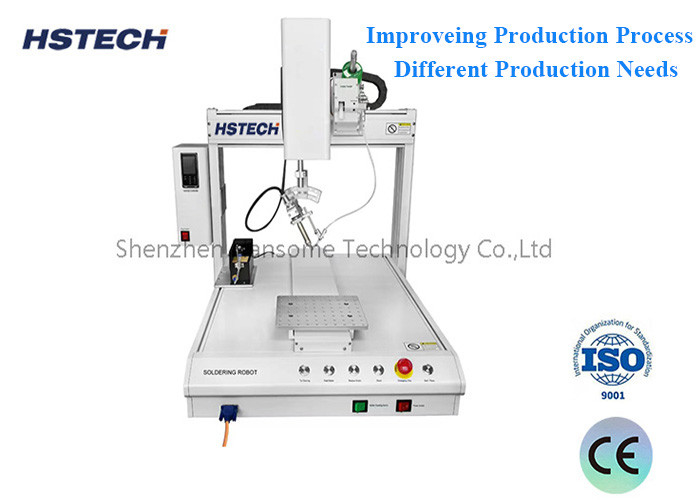

Flexible Desktop Soldering Robot with Intelligent Control and High-Definition Vision
Key Features
Precision Control:
Many desktop soldering machines offer precise temperature control, ensuring that the soldering process is efficient and minimizes damage to components.
Automatic Soldering:
Some models have automatic soldering capabilities, allowing for consistent and repeatable solder joints, which is crucial for mass production.
Multiple Functions:
They may come equipped with various functions such as solder paste printing, pick-and-place, and reflow soldering, making them versatile for different tasks.
Compact Design:
As desktop machines, they are designed to fit in smaller workspaces, making them suitable for labs, workshops, or home use.
User-Friendly Interface:
Many machines are equipped with intuitive controls and displays, making it easier for users to operate them without extensive training.
Benefits
Increased Efficiency:
Automating the soldering process can significantly speed up production times and reduce labor costs.
Improved Quality:
Consistent soldering quality reduces the likelihood of defects, enhancing the overall reliability of the assembled product.
Reduced Skill Requirements:
Desktop soldering machines can make it easier for less experienced operators to achieve high-quality solder joints.
Cost-Effective for Small Batches:
Ideal for small to medium production runs, allowing businesses to scale without investing in larger, more complex machinery.
Features:
Full-View Display: Equipped with a display that provides a comprehensive view of the entire working process, ensuring transparency and control.
Dual Workstations & Rapid Switch Soldering System: Features two workstations and a swiftly interchangeable soldering system, eliminating the need for time-consuming assembly and disassembly of fixtures, thereby enhancing productivity.
Proprietary Intelligent Control System: Boasts an independently developed intelligent control system characterized by robust functionalities and a user-friendly operation interface, simplifying complex tasks.
Comprehensive Process Library: Comes with a robust process library, simplifying and accelerating the programming process, reducing setup time.
Versatile Auxiliary Fixture Option: Offers an optional universal auxiliary fixture component that can be easily and quickly configured on-site, adapting to various soldering requirements.
Reliable Mechanical Structure: Features a high-quality and dependable mechanical design that requires minimal maintenance, ensuring long-term durability and reliability.
Stable High-Power Heating Controller: Incorporates a high-power heating controller that guarantees the stability of continuous welding operations. The robot control system oversees real-time temperature monitoring and control for precision soldering.
Smoke Purification & Filtration System: Equipped with a smoke purification and filter system, extending the lifespan of soldering irons and enhancing soldering quality by reducing impurities in the work environment.
Automatic Cleaning Function: The machine is equipped with an automatic cleaning feature, ensuring more stable soldering processes and extending the service life of soldering irons, thereby reducing downtime and maintenance costs.
| Model | HS-S5331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y1/Y2/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y1/Y2/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 60kg |
| Machine dimension | 680*585*800mm |
Applications
Electronics Manufacturing: A vital process utilized in the assembly of a wide range of products, including consumer electronics, automotive components, and medical devices, ensuring the efficient production of high-quality electronic systems.
Prototyping: A prevalent practice in research and development settings, enabling the rapid and efficient creation of prototypes, facilitating the testing and refinement of new electronic designs before mass production.
Repair and Maintenance: An essential service for addressing issues with existing electronic devices, involving the repair or reworking of components to restore functionality and extend the lifespan of electronic equipment.
