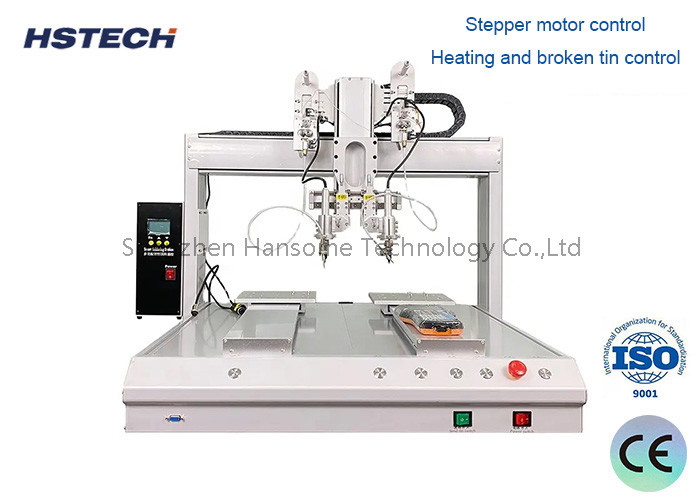

Hiwin Guide Automatic Soldering Robot Desktop Soldering Machine with Stepper Motor

Automatic Soldering Robot Desktop Soldering Machine with Stepper Motor and Hiwin Guide

Introduction

This automatic desktop type soldering machine is a hot sale product, which using the teaching box for manual programing, adopt the high quality stepper motor and timing belt to driving the machine. The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.

Features

1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,

3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.

4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

8, With the handheld LCD teaching pendant, the programming is simple,high precision and easy to learn.

Specification

1,High accuracy control system

Automatic dispenser can be very fast and easy to program directly for the product, and can achieve flexible switching between point control and coordinate input. At the same time can also quickly deal with different types of graphics, in addition to accurate and convenient for the speed and the amount of glue control, in addition to this system can also set the platform range, speed and load and other parameters, so as to achieve better control of the dispensing operation.

2, High expansion capacity

Automatic dispenser with multi-head control and multi-output control, as well as blowing and drawing and production line control and other degrees of expansion characteristics, in addition to the fully automated dispenser control system has a high degree of scalability. Whether for product upgrading or production process improvement, this automatic dispenser can be flexible and rapid adaptation.

3, Perfect solution

Fully automated dispenser control system contains an intelligent controller, adapter boards and more fully functional CAD conversion software and offline control system and other components, while there are a variety of other optional accessories, the new automated dispenser can also support the processing mode, CAD mode, and a variety of processing or programming methods. In addition, this equipment can also provide a complete solution for different industries with different dispensing requirements.

Translated with www.DeepL.com/Translator (free version)

Application

1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
