| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

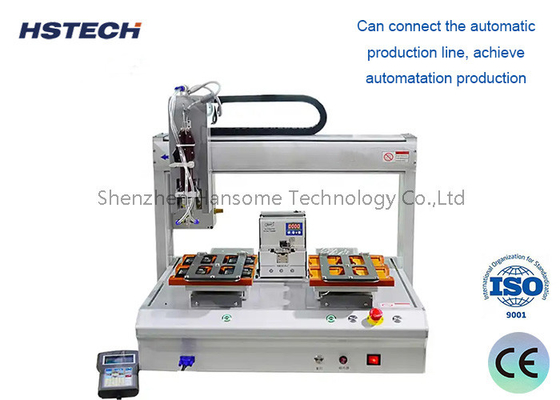

High Precision Automatic Soldering Robot With Dual Soldering Table And Stepper Motor
Introduction:
This automatic soldering machine with dual soldering table, single soldering head but with two soldering iron, so it has two temperature controller, but it without Rotation function. This model suitable for soldering regular PCB board or production, dual soldering iron working at the same time, great improve the soldering efficiency. The machine adopt the air pressure and electricity driven, through the teachpant box for manual programing each points, then start the automatic soldering.
Features:
1, Dual soldering table, single moving head but with dual soldering irons.
2, Each soldering iron has a individual temperature controller.
3, The soldering iron without nitrogen, very safety and environment protective,
4, The soldering head can be tilt by choosing a radian fixture,so the head can do themulti-directionally adjusted, which can protect the PCB and components from damage.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
7, With the handheld teaching pendant, the programming is simple and easy to learn.
Compact design:
Fits in small workspaces, easy to move and operate.
Temperature control:
With adjustable temperature settings, suitable for different types of solder and components.
Automation function:
Some models offer automatic soldering function to improve soldering speed and consistency.
Multiple soldering techniques:
Supports multiple soldering methods, such as manual soldering, hot air soldering, etc.
User-friendly interface:
Usually equipped with a simple control panel or touch screen for easy operation and setting.
Application areas
Electronic manufacturing:
Widely used in small batch production or prototype development.
Repair and maintenance:
Suitable for repair and parts replacement of electronic products.
Education and training:
In electronic engineering courses, used for teaching and practice.
Advantages
High efficiency:
Increase soldering speed and reduce production time.
Soldering quality:
Provide stable temperature control to ensure soldering quality.
Flexibility:
Suitable for many types of electronic components to meet different needs.
Specification:
| Model | HS-DS5331 |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension | 600*585*800mm |
Application Scenarios:
Electronic Manufacturing
Widely used for component welding in small batch production and prototype development.
Laboratory R&D
Suitable for various welding experiments and tests in laboratory environments.
Repair and Service
Can be used to repair and replace damaged components in electronic devices
