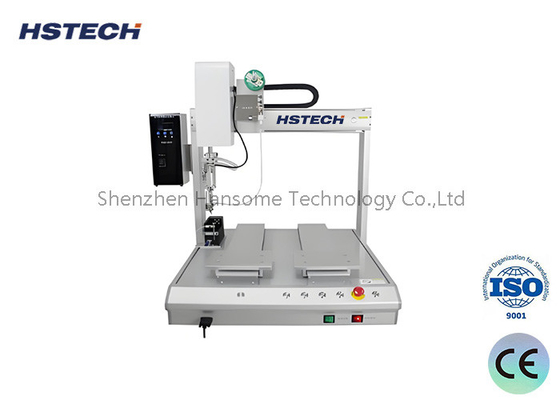

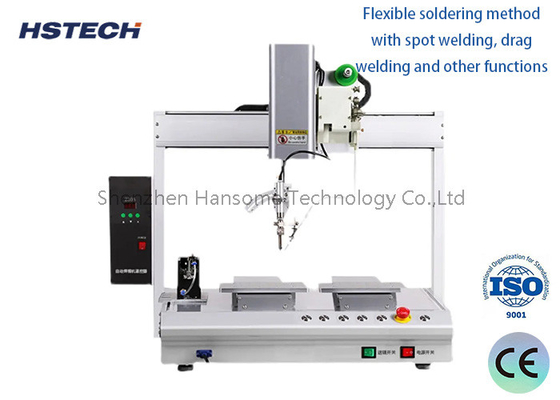

Manual Programming 4 Axis Soldering Machine for Optics and General Consumer Products

High Precision Solder Robot with Auto Cleaning & Iron Head Alignment

Introduction

The automatic desktop soldering machine, a highly sought-after product, revolutionizes soldering processes with its innovative design. Equipped with a user-friendly teaching box for manual programming, this machine ensures seamless integration and customization to suit various applications. Powered by high-quality stepper motors and timing belts, it delivers precise and reliable motion control, enhancing the overall performance and precision of the soldering tasks.

Versatility is at the core of this machine, offering the choice of a single or double workstation configuration to cater to varying production needs. With a standard travel range of 300x300mm, it is designed to accommodate a wide range of products, but its customization options extend far beyond. Customers can request tailored specifications to perfectly match their unique product requirements, ensuring optimal compatibility and performance.

Overall, this automatic desktop soldering machine represents the pinnacle of modern soldering technology, blending advanced components, flexibility, and customization to deliver unparalleled results in the manufacturing industry.

Features

1. The machine boasts a sophisticated 4-axis operation, incorporating X/Y/Z linear movements along with R rotation, enabling multi-angle soldering capabilities that cater to diverse application needs.

2. Safety and environmental consciousness are paramount, as evidenced by the machine's automatic cleaning function. Operating without the need for nitrogen, the soldering iron/tip ensures both user safety and minimal environmental impact.

3. Precision and accuracy are hallmarks of this machine, thanks to the integration of Taiwan's renowned Hiwin linear guides within its movement system. These high-quality components guarantee seamless, high-precision operations.

4. A robust control system, built upon a mature control board, ensures reliable machine operation. For even greater versatility, the option to utilize PLC (Programmable Logic Controller) is also available, catering to specific control requirements.

5. Simplifying programming and setup, the machine employs an Iron head as the base point for aligning key product positions. By pressing the enter key, the system automatically generates and records this point, facilitating subsequent data entry and setup procedures, streamlining the entire process.

Specification
