| Brand Name: | GKG |
| Model Number: | G5 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
SMT Paste Printer with Magnetic Pin/Support Block & R-L Transport
Application
The G9+ Automatic solder paste printing machine is a high-end machine for SMT high-end application, the width of GT++ BTB is only 2830mm, can perfectly satisfy the printing process requirement of 03015,2025 pitch, high precision and high speed.
Specification
| Model | G5 |
| Stencil size | 370x370mm(min size) |
| 737x737mm(max size) | |
| 20-40mm(thickness) | |
| Max PCB Size | 400x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| PCB warpage | max 1% PCB diagonal |
| Transport height | 900±40mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, can be adjustment |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/up-down table |
| PCB clamping system |
Patented over the top clamping/side clamping
|
| Print head |
Two independent motorised printheads
|
|
Squeegee Pressure
|
0.5~10Kg (Program Control)
|
|
Print Speed
|
6-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
|
Cleaning System
|
Ireinforced vacuum absorption ,dry ,wet, vacuum three modes
|
|
CCD FOV
|
8x6mm
|
| Machine adjust range |
X: ± 3mm, Y:± 7 mm , θ:± 2°
|
| Vision |
Look Up/Down Optics Structure/CCD/Geometry Pattern-match
|
Whole Machine Specification
|
Repeat Position Accuracy
|
±0.01mm
|
|
Printing Accuracy
|
±0.025mm
|
|
Cycle Time
|
＜8 Sec
|
|
Product Changeover
|
old:<3 mins,new:<5 mins |
|
Air supply
|
4~6 kgf/cm
|
| Power supply |
AC:220±10%,50/60HZ, 2.5KW
|
| Control method | PC |
| Operation system |
Windows XP/Win7
|
|
Machine Dimensions
|
1140(L) x 1364(W) x 1404 (H)mm
|
|
Machine Weight
|
Approx: around 1000Kg |
Features
The CCD digital system boasts an innovative, all-new optical path design, featuring uniform circular illumination and a coaxial light source of exceptional brightness. This dual light source system allows for infinite adjustability of brightness levels, facilitating effortless recognition of diverse marking points, even those with uneven surfaces or materials like tin, copper, and silver platings, hot air soldering marks, FPCs, and a wide range of PCB colors.

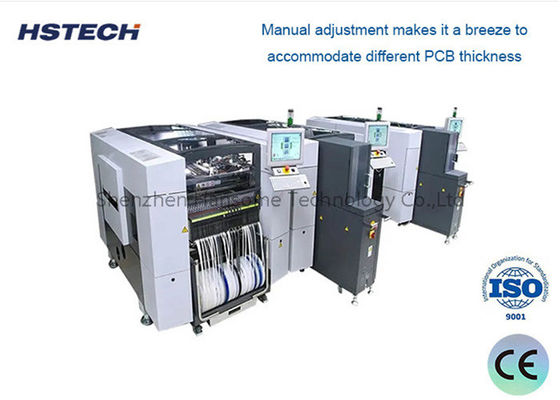

Equipped with high-precision PCB thickness adjustment capabilities, the system boasts an incredibly reliable structure that ensures stable XY movement. Manual adjustments are straightforward, making it a seamless process to accommodate various PCB thicknesses with ease.
