| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

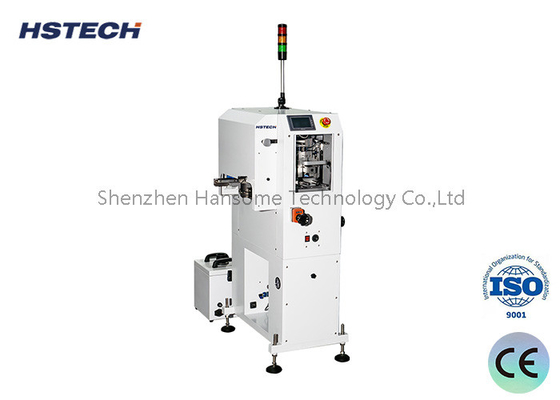

Precision PCB Dust Cleaning Machine with High-Performance Brush and Roller for Results
Introduction
This machine is designed to remove dirty from bare boards before solder paste printing, or other adhesive application. The machine first use a brush to cleaning, then use a ionizer bar to cleaning the static electricity, and after that use a roller together with 2 pcs sticker rollers, at the end also use a ionizer to cleaning the static electricity. The design of the machine will ensure the SMT lines more intelligent at the beginning of the production, it provide a more clean board before PCBA production, make the products more precision and high end.
Specification
| Model | HS-DC250 | HS-DC330 | HS-DC390 | HS-DC460 |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB Transporting height | Standard 900±20mm |
| PCB flow direction | Left to right |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~240V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | 1 pc,ESD,high precision brush |
| Ionizer | 2 pcs(Keyence) |
| Sticker roller | 2 pcs |
| Roller | 1 pc |
| Dust collector | 1 pc |
| Transport speed | 0~9m/min,adjustable |
| Cycle time | Around 8s |
Features
1, The machine produced with a high precision testing, make sure the sticker roller cleaning fully touching the PCB surface.
2, PCB surface cleaning without any interspace.
3, Double ionizer cleaning ensure the static electricity cleaned fully.

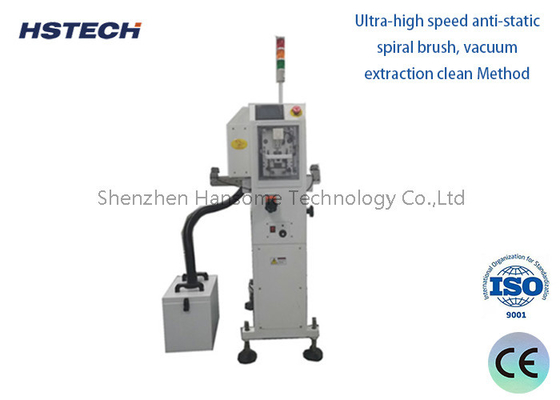

4, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
5, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
6, Equipped with the static eliminate function, completely eliminate electrostatic interference.
7, Mechanical parts draw-out design, maintenance is simple.
8, Interface display in English and Chinese, interface operation convenient and simple.
9, The machine also can used after PCB laser marking.
Key Features
Gentle Cleaning Mechanism:
Utilizes soft brushes, air blowers, or vacuum suction to remove dust without scratching or damaging the PCB surface.
Chemical Solutions:
Some cleaners use specialized cleaning solutions that are safe for electronic components to dissolve contaminants.
Static Control:
Many PCB cleaners are designed to minimize static electricity buildup, protecting sensitive electronic parts.
Portable Design:
Often lightweight and easy to handle, allowing for convenient use in various settings.
Compatibility:
Suitable for different types of PCBs, including those with sensitive components like capacitors and ICs.
Benefits
Improved Performance:
Regular cleaning helps maintain PCB performance by preventing dust accumulation that can cause overheating or malfunctions.
Enhanced Reliability:
Reduces the risk of failure in electronic devices by ensuring that PCBs are clean before assembly or testing.
Cost-Effective Maintenance:
Helps extend the lifespan of PCBs and their components, reducing the need for replacements.
Easy to Use:
Designed for straightforward operation, making it accessible for technicians and operators.
Applications
Electronics Manufacturing:
Used in assembly lines to clean PCBs before and after soldering and assembly processes.
Repair and Maintenance:
Essential in repair shops for cleaning PCBs before diagnostics or repairs.
R&D Laboratories:
Employed in research and development settings to ensure clean boards for testing and experimentation.
