Brand Name: | HSTECH |
Model Number: | HS-M535 |
MOQ: | 1 set |
Price: | Negotiable |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 500 pcs per month |

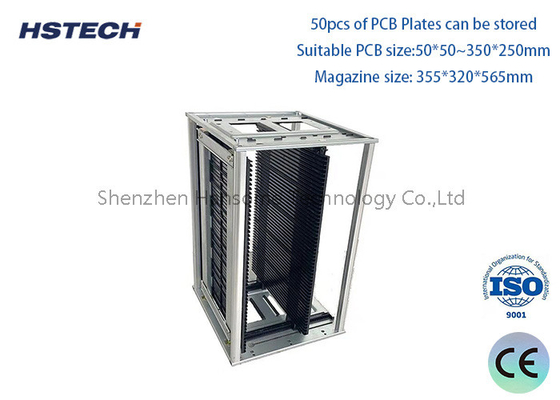

Flexible Customizable PCB Handling Equipment Anti-static SMT Loading and Unloading Rack
PCB Storage Magazine:
Anti-static SMT loading and unloading rack. It is also called electrostatic frame, anti-static PCB storage turnover rack, PCB board turnover box, etc. in the market. The anti-static SMT loading and unloading rack is widely used in automatic loading and unloading machines. It is acid and alkali resistant, oil resistant, high temperature resistant, non-toxic and odorless. It can be used to hold PCB boards. It is easy to clean. The circuit boards are easy to turn around, stacked neatly and easy to manage. With its reasonable design and excellent quality, Rongxin anti-static SMT loading and unloading racks are suitable for transportation, distribution, storage, circulation and processing in factories.
Key Features
Modular Design:
Often designed to accommodate various sizes and configurations of PCBs, allowing for flexible storage options.
Material:
Typically made of durable materials such as metal or high-quality plastic to protect PCBs from damage.
Stackable:
Many magazines are stackable to optimize space in a manufacturing facility.
Identification System:
Some storage magazines come with labeling systems or transparent sections for easy identification of stored PCBs.
Anti-Static Properties:
Designed to minimize static electricity to protect sensitive electronic components on the PCBs.
Benefits
Space Optimization:
Helps maximize storage space in manufacturing environments by providing organized storage solutions.
Protection:
Protects PCBs from physical damage, dust, and static electricity.
Efficiency:
Streamlines the handling process, making it easier for workers to access and manage PCBs.
Inventory Management:
Facilitates better inventory tracking and management, ensuring that components are readily available when needed.
Applications
Electronics Manufacturing:
Widely used in factories and assembly lines for storing PCBs at various stages of production.
Prototyping:
Useful in R&D environments for organizing prototype PCBs during testing and development.
Repair Shops:
Employed in electronics repair facilities to store PCBs waiting for service or repair.
Features

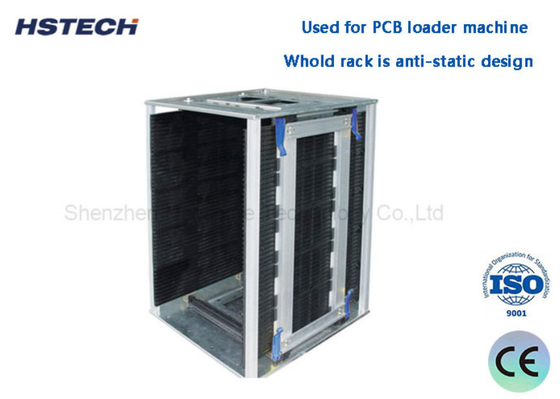

1, This product is used for PCB loader and unloader machine, collect,transport and store the PCBs in the warehouse or production room.

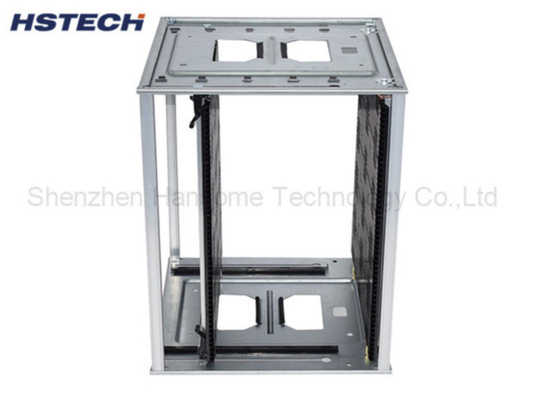

2, Top and bottom part using drable metal material panel, ensure the whole structure stable.
3,, The whold rack is anti-static design, max can store 50pcs PCBs.
4, Width can be adjusted via gear and fixed by the clip.
5, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
6, Stable structure, wont bent during operation, the racks also high temperature resistance.
7, Easy to install and disassembly, convenient for replacement and maintenance.
Specification
Overal size | 535*460*565mm,also has other options |
Suitable PCB size | 50*50~530*390mm |
PCB storage capacity | Max 50pcs |
Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
Surface resistance | 105Ω-109Ω |
Heat-resistance | 80 °C/120°C/200°C |
Width adjustment | Gear Tracker / clips |
Top and bottom base panel | Metal material |
Type | Anti-static |
Single weight | 5kg |
PCB Storage Magazine | |||
