| Brand Name: | HSTECH |
| Model Number: | HS-S441S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100 sets per month |

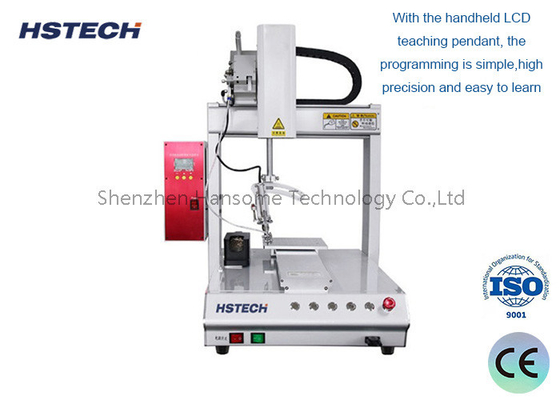

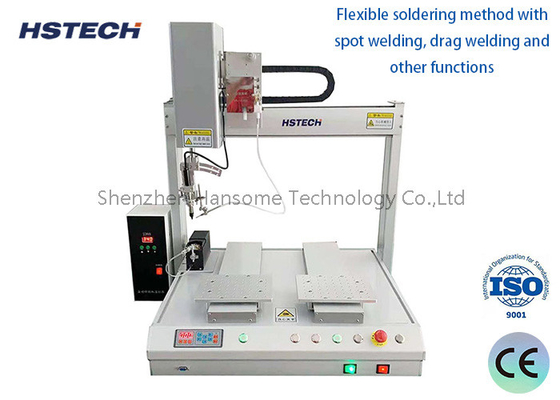

Double Soldering Iron Air Cleaning Automatic Soldering Machine With Stepper Motor And Timing Belt
Automatic Desktop Soldering Robot
This automatic soldering machine is double soldering head machine, customized moving range to 400mm. The machine is used to save labor, use automatic soldering method to instead traditional manual soldering. During the operation, only need one operator to loading and unloading the product after setting the program.
Single Y platform design
Adopting single Y-axis motion design, the mechanical structure is simplified and suitable for smaller workspaces.
High-precision positioning
Equipped with a high-precision motion control system to ensure accurate positioning of welding points.
Automated welding
Supports programmed welding, which can automatically adjust parameters according to different welding requirements to improve production efficiency.
User-friendly interface
It has an intuitive operation interface, which is convenient for programming and real-time monitoring of the welding process.
Strong compatibility
It is compatible with a variety of welding tools and materials and adapts to different types of welding tasks.
Application scenarios
Electronic manufacturing
Widely used for component welding in small batch production and prototype development.
Laboratory R&D
Suitable for various welding experiments and tests in laboratory environments.
Repair and service
Can be used to repair and replace damaged components in electronic devices.
Features
1, Double soldering Iron, single Y working platform.
2, Handheld teach pendant programmer.
3, Heating controller.
4, Broken tin controller.
5, Solder pen assembly.
6, Welding tip.
7, Tin out components
Specification
| Model | HS-S441S | HS-S551S | HS-S661S |
| Voltage | AC110V/220V,50/60Hz | ||
| X/Y/Z working range | 400*400*100mm | 500*500*100mm | 600*600*100mm |
| R axis | none | ||
| X/Y/Z moving speed | max 300mm/s | ||
| Driven system | Stepper motor,timing belt | ||
| Linear guide | Taiwan brand high precison guide | ||
| Repeat accuracy | ±0.02mm | ||
| Programing | Teach pendant | ||
| Control system | Control board | ||
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
||
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
||
| Document support | CAD,CorelDRAW | ||
| Iron Tin cleaning | Air cleaning/pneumatic | ||
| External interface | USB+RS232 | ||
| Soldering method | Point/drag soldering | ||
| Weight | 40kg | 50kg | 55kg |
| Machine dimension | 615*685*800mm | 715*715*800mm | 815*815*800mm |
