Air Cleaning Automatic Soldering Machine With Stepper Motor And Timing Belt

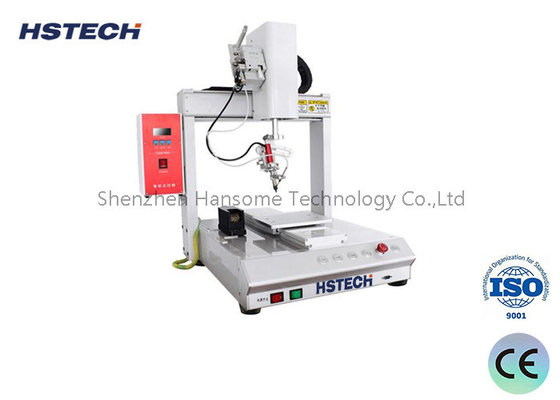

Automatic Desktop Soldering Robot:
This automatic soldering machine is double soldering head machine, customized moving range to 400mm. The machine is used to save labor, use automatic soldering method to instead traditional manual soldering. During the operation, only need one operator to loading and unloading the product after setting the program.
Working platform
The single Y-axis working platform design is adopted to provide a working area.
The platform size is generally about 400mm×300mm, which can accommodate smaller circuit boards or parts.
Welding head
Equipped with high-precision welding iron head, it can realize automatic welding.
The welding head has position and angle adjustment functions to adapt to different welding objects.
Motion control
Adopting stepper motor or servo motor drive, it can realize automatic movement of X and Y axes.
It can be programmed to realize complex welding paths and welding parameter control.
Integrated design
The whole system integrates welding head, workbench, controller and other components.
Adopting integrated design, small size and easy to use.
Intelligent function
Some models have image recognition, intelligent obstacle avoidance and other functions.
It can automatically identify welding positions and solder joints to improve welding accuracy.
Features:

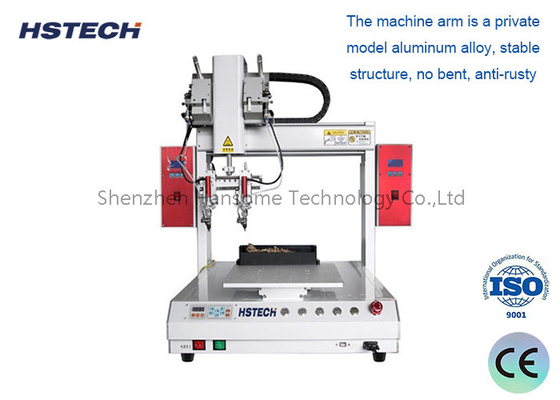

1, Double soldering Iron, single Y working platform.
2, Handheld teach pendant programmer.
3, Heating controller.
4, Broken tin controller.
5, Solder pen assembly.
6, Welding tip.
7, Tin out components
Specification:
| Model | HS-S441S | HS-S551S | HS-S661S |
| Voltage | AC110V/220V,50/60Hz | ||
| X/Y/Z working range | 400*400*100mm | 500*500*100mm | 600*600*100mm |
| R axis | none | ||
| X/Y/Z moving speed | max 300mm/s | ||
| Driven system | Stepper motor,timing belt | ||
| Linear guide | Taiwan brand high precison guide | ||
| Repeat accuracy | ±0.02mm | ||
| Programing | Teach pendant | ||
| Control system | Control board | ||
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
||
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
||
| Document support | CAD,CorelDRAW | ||
| Iron Tin cleaning | Air cleaning/pneumatic | ||
| External interface | USB+RS232 | ||
| Soldering method | Point/drag soldering | ||
| Weight | 40kg | 50kg | 55kg |
| Machine dimension | 615*685*800mm | 715*715*800mm | 815*815*800mm |
| Desktop Soldering Machine | |||
