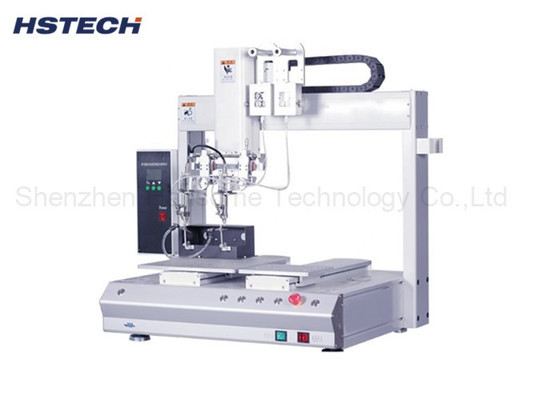

4 Axis Dual Working Platform Tabletop Soldering Robot With Single Or Double Tip Soldering Head

 4 Axis  Dual Working Platform Tabletop Soldering Robot with Single Or Double Tip Soldering Head

Automatic benchtop soldering machine, it used for instead of the traditional manual soldering. By make customized fixtures to fix the products, the temperature controller heating the solder tip, solder wire automatic feeding, the machine will automatic soldering the products according to the setted programs.

Features:

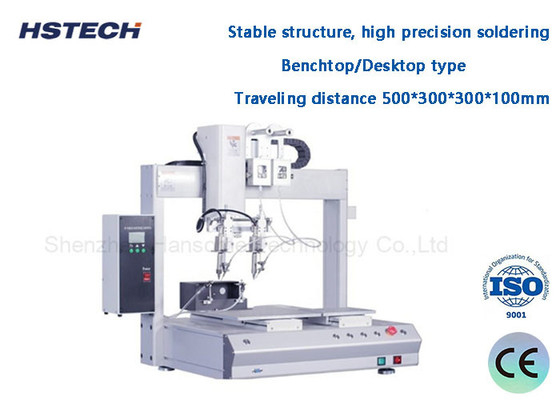

1, Stable structure, high precision soldering.

2, Benchtop/Desktop type, easy to moving and maintenance.

3, Use each box to set the programs, programs can storage and import directly.

4, The soldering tip/iron available for 360degree rotation.

5, Traveling distance 500*300*300*100mm.

6, Automatic solder wire feeding.

7, Available for spot, drag, circle, curve and other inregular soldering pcb panels.

8, Double soldering tip, double working station, high efficiency in circular working, keep the machine working all the time.

9, Precision tin vol control&consistency welding, can save at least 30% tin volume compared with manual soldering.

10, High quality heating and temperature controller, temp accuracy at ±2℃.

11, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.

12, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

Feature

Multi-axis control
The robot uses a 4-axis motion control system, including X, Y, Z-axis displacement and rotation axes.
The multi-axis design provides a more flexible working range and motion control capabilities.

High precision
The robot positioning accuracy can reach ±0.05mm to ensure welding quality.
Repeatable positioning accuracy can reach ±0.03mm, ensuring welding consistency.

Efficient work
The robot has high-speed movement capabilities and the welding efficiency is significantly improved.
It can automatically complete the entire process of solder joint positioning and molten solder application, greatly reducing manual intervention.

Flexible and portable
The whole machine adopts a compact desktop design, which occupies a small area and is easy to install.
It has good mobility and can be flexibly adjusted according to production needs.

Intelligent control
Equipped with human-computer interaction interface, programmable control of welding parameters and paths.
Equipped with automatic welding function, it can automatically select the appropriate welding method according to the welding task.

Widely used
Suitable for small precision welding needs in electronics, automobiles, aerospace and other industries.
Suitable for welding work on various types of workpieces such as circuit boards and metal parts.

Specification:

Application:

The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering.

It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields.

Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.
