| Brand Name: | HSTECH |
| Model Number: | HS-S5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Signal Station Robotic Soldering Machine With Smoke Purification Filter System
Application:
The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields. Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.
Features:
1, Full automatic operation in one step, including auto soldering, auto clean, auto smoke exhausting,etc.
2, Suitable for all components and inserts components soldering.
3, Available for spot, drag, circle, curve and other inregular soldering pcb panels.
4, Double soldering tip, double working station, high efficiency in circular working, keep the machine working all the time.
5, Precision tin vol control&consistency welding, can save at least 30% tin volume compared with manual soldering.
6, High quality heating and temperature controller, temp accuracy at ±2℃.
7, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.
8, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
Specification:
| Model | HS-S5331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y1/Y2/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y1/Y2/Z moving speed | max 300mm/s |

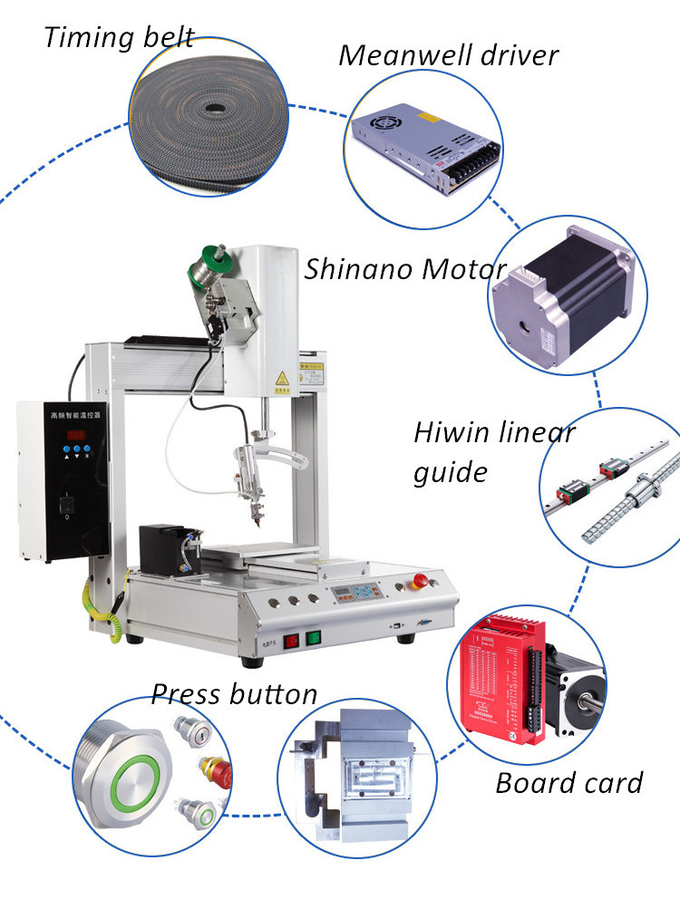

| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |

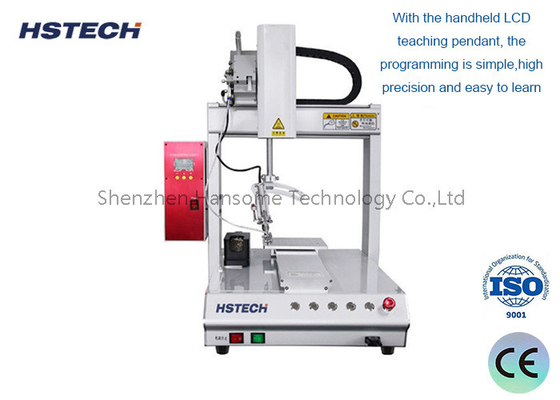

| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 85kg |
| Machine dimension | 680*585*800mm |
Automatic welding
The robot has the functions of automatic identification of component position, automatic material collection, automatic positioning, automatic welding, etc.
It can realize unattended automatic welding operations and greatly improve production efficiency.
High-precision positioning
The robot adopts a high-precision visual system and motion control system, which can accurately align the welding tip with the welding point.
The welding quality is stable, which is conducive to improving the product yield rate.
Flexible and multifunctional
It can be programmed according to different welding requirements, supporting various welding methods such as spot welding, wire welding, SMT welding, etc.
It has functions such as automatic detection and welding quality monitoring.
Integrated design
Integrates key components such as welding station, feeding system, visual system, and manipulator into one.
The whole machine is small in size and can be placed directly on the desktop for use.
Easy to operate and maintain
Equipped with a human-computer interaction interface, the operation is simple and convenient.
The modular design is conducive to maintenance and upgrade.
