| Brand Name: | HSTECH |
| Model Number: | HS-S441S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

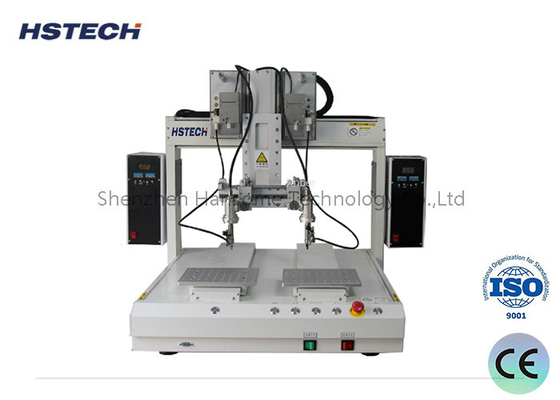

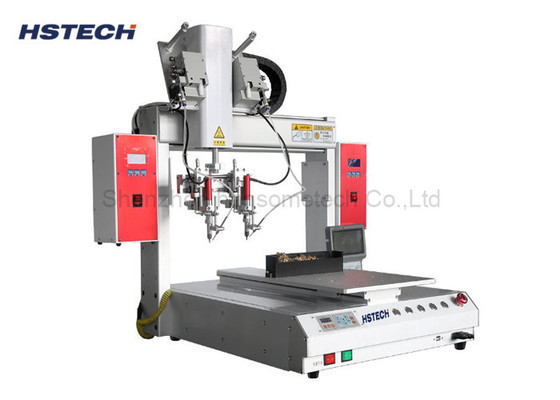

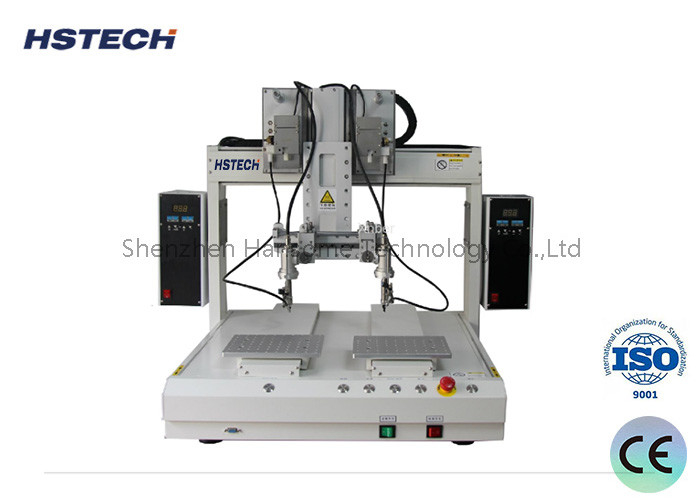

Dual Soldering Head 400mm Moving Range Timing Belt Auto Soldering Machine/Robot
Introduction
This automated soldering system boasts a dual soldering head configuration, equipped with a vast 400mmx400mm movement range, making it ideally suited for intricate and demanding soldering tasks. It excels in processing complex applications, particularly the welding of mixed circuit boards, heat-sensitive components, and delicate devices within the SMT (Surface Mount Technology) post-assembly phase, ensuring precision and efficiency throughout the soldering process.
Specification
| Model | HS-S441S |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 400*400*100mm |
| R axis | none |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
515*585*800mm |
Features
1.Enhanced 3-Axis Operation: With a travel range of 400x400mm, this machine effortlessly tackles even the most inaccessible dead spaces during welding, ensuring comprehensive coverage.
2.Versatile Welding Techniques: Offering both spot welding and drag welding capabilities, it adapts seamlessly to various soldering requirements, maximizing flexibility and efficiency.
3.Rugged All-Aluminum Construction: Crafted from durable aluminum, the body resists deformation and corrosion, ensuring stable operation over extended periods.
4.Efficient Programming Workflow: The work procedure facilitates point-to-point and block-to-block copying, significantly reducing programming time and accelerating production cycles.
5.Eco-Friendly Soldering Iron: Equipped with a nitrogen-free soldering iron, it promotes a safer and more environmentally conscious soldering process.
6.Soldering Head Multi-Directional Adjustment: This feature protects both PCBs and delicate components by allowing precise adjustment of the soldering iron head in multiple directions.
7.Precision-Driven Performance: High-precision stepping motors, coupled with synchronous belt drive and advanced algorithms, guarantee unparalleled positioning accuracy and repeatability, enhancing overall soldering quality.
8.Auto-Cleaning Maintenance: The built-in auto-cleaning function ensures stable welding performance while extending the lifespan of the soldering iron, minimizing downtime and maintenance costs.
