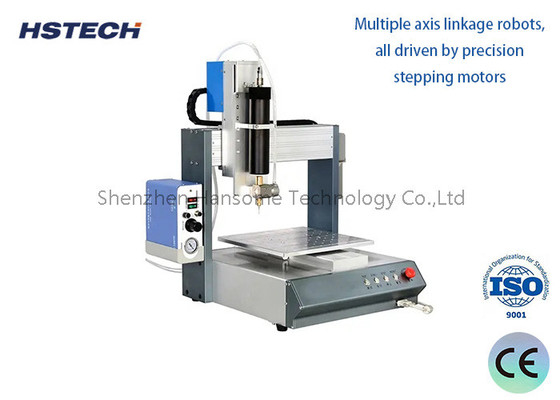

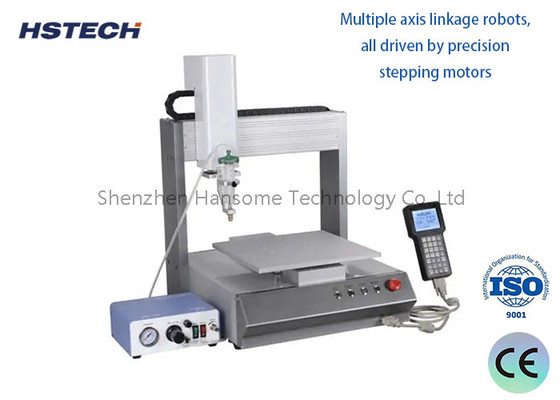

High Efficiency Desktop Type Robotic Soldering Machine With Double Soldering Tip

High Efficiency Desktop Type Robotic Soldering Machine With Double Soldering Tip

Introduction:

Automatic benchtop soldering machine, it used for instead of the traditional manual soldering. By make customized fixtures to fix the products, the temperature controller heating the solder tip, solder wire automatic feeding, the machine will automatic soldering the products according to the setted programs.

Features:

1, Stable structure, high precision soldering.

2, Benchtop/Desktop type, easy to moving and maintenance.

3, Use each box to set the programs, programs can storage and import directly.

4, The soldering tip/iron available for 360degree rotation.

5, Traveling distance 500*300*300*100mm.

6, Automatic solder wire feeding.

7, Available for spot, drag, circle, curve and other inregular soldering pcb panels.

8, Double soldering tip, double working station, high efficiency in circular working, keep the machine working all the time.

9, Precision tin vol control&consistency welding, can save at least 30% tin volume compared with manual soldering.

10, High quality heating and temperature controller, temp accuracy at ±2℃.

11, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.

12, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

Mechanical structure:
It adopts a desktop small robot design with a small footprint
The robot arm has 4-5 degrees of freedom and can realize flexible welding movements
The whole machine adopts a modular design, and parts replacement and maintenance are convenient

Intelligent control system:
Equipped with an industrial-grade PLC controller, supporting multiple programming languages
Equipped with a touch screen human-machine interface, the operation is simple and intuitive
It has intelligent functions such as automatic identification of solder joints and planning of welding paths

Welding system:
Integrated with high-performance soldering pens and soldering material feeding mechanisms
Supports multiple welding modes such as constant temperature and constant power
Can accurately control parameters such as welding temperature and speed

Visual guidance system:
Adopts high-resolution industrial cameras for solder joint identification
Combined with advanced machine vision algorithms, automatic welding can be achieved
Can monitor solder joint quality and automatically adjust welding parameters

Application scenarios:
Suitable for welding operations such as assembly and maintenance of electronic products
Such as welding of small electronic parts such as mobile phones, tablets, and circuit boards
Can also be used in industries such as instruments and meters, electronic toys, etc.

Specification:

Application:

The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields. Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.
