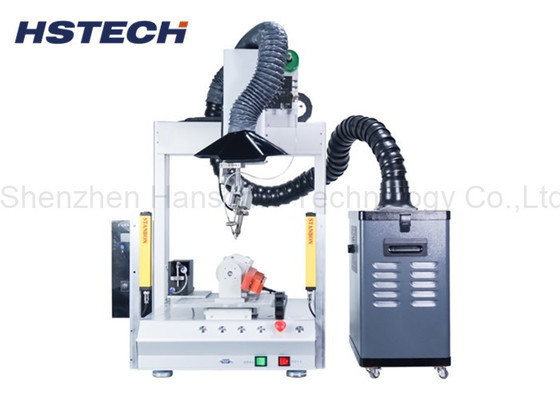

Multi-Dimensional Automatic Smog Cleaner Soldering Robot for Improved Air Environment
Introduction:
This automatic soldering machine is a special customized soldering machine, it equipped with a smog cleaner to clean the solder smog, for keep better air environment in the production factories.
This machine is a normal requirment in some Europe countries, and it become a trand all over the world. The cleaner has a smog suck in pipe which is installed on the top of the solder tip, and moving together with the solder tip, through this method the cleaner can suck in most of the smog,keep the air clean and more health.
Environmental protection design:
Equipped with an efficient smoke collection system, it can quickly absorb and purify harmful smoke generated during the welding process
Adopting HEPA-grade filter elements, it can effectively remove 99.97% of tiny particles
Ensure the air quality of the working environment and protect the health of operators
Intelligent control:
Integrated PLC control system, supports multiple programming languages
Can be linked with the production management system to achieve remote monitoring and data analysis
Equipped with a human-computer interactive touch screen, the operation interface is simple and intuitive
High-precision welding:
Adopting a 4-degree-of-freedom robotic arm structure, it can achieve precise three-dimensional welding movements
Integrated with high-precision temperature sensors and welding power supplies, supporting constant temperature, constant current and other welding modes
Welding parameters can be programmably controlled to ensure stable solder joint quality
Visual guidance system:
Equipped with a high-definition CCD camera to achieve automatic positioning of solder joints
Combined with machine vision algorithms, it can automatically correct the welding path
Can detect the solder joint status and feedback to adjust the welding parameters
Application scenarios:
Applicable to welding production in the electronics, communications, automotive and other industries
Especially suitable for use in occasions sensitive to environmental pollution
Can be widely used in SMT, DIP, PCB and other electronic components welding
Smg Cleaner Specification:
| Model | H100A | H200A |
| Voltage | 220V/110V,50/60Hz | 220V/110V,50/60Hz |
| Power | 100W | 200W |

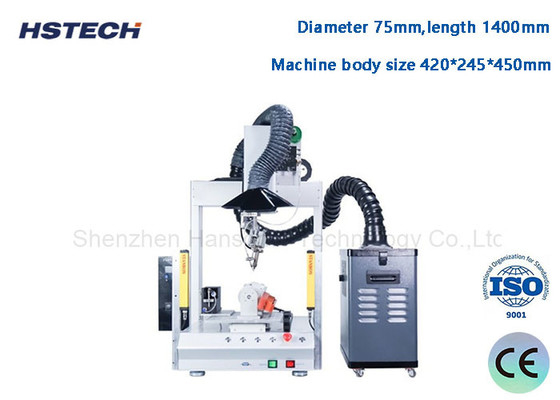

| Pipe size | Diameter 75mm,length 1400mm | Diameter 75mm,length 1400mm |
| Noise | <42dB | <50dB |
| Air volume | 250m³/h | 370m³/h |
| Weight | 15kg | 17kg |
| Machine body size | 420*245*450mm | 420*245*450mm |
Machine Features:
1, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The soldering iron without nitrogen, very safety and environment protective.
3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.
4, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
7, With the handheld LCD teaching pendant, the programming is simple and easy to learn.
Specification:
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension | 520*585*800mm |
Application:
Electronic manufacturing industry:
Used for automatic welding of various electronic products such as PCB boards and electronic components.
It can achieve high-precision and high-repeatability welding to improve product quality.
Save a lot of labor costs and improve production efficiency.
Mold manufacturing industry:
Applied to the welding processing of mold parts and small metal parts.
It can complete complex welding paths and improve welding quality.
Reduce dependence on skilled workers and shorten production cycle.
Medical device manufacturing:
Used for welding processing of small parts such as medical devices and precision instruments.
Ensure welding quality and meet the strict requirements of the medical industry.
Improve the level of production automation and shorten delivery cycle.
Aerospace manufacturing:
Suitable for high-precision welding of small parts in the aerospace field.
It can meet the strict requirements of the aerospace industry for reliability and consistency.
Improve production efficiency and reduce labor costs.
Research laboratory:
Used for welding research of laboratory instruments and equipment and small parts.
It can perform complex welding experiments and improve research efficiency.
Avoid operational errors caused by manual welding.
