| Brand Name: | HSTECH |
| Model Number: | HS-S5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

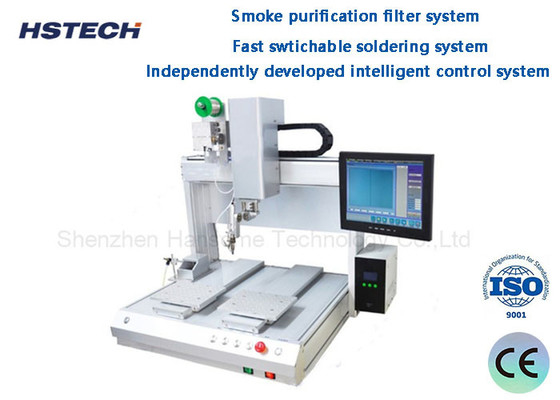

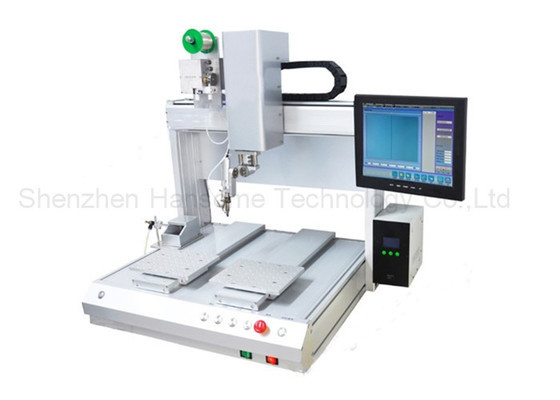

High Intelligent Control Desktop Soldering Robot with Smoke Purification Filter System
Mechanical structure:
The desktop design is adopted, which occupies a small area and is suitable for installation on the workbench or production line
The robot arm adopts a 4-degree-of-freedom design to achieve precise three-dimensional welding movements
The lightweight robot arm is flexible in movement and quick in response
Intelligent control system:
Built-in industrial-grade PLC controller, supports multiple programming languages
Equipped with a human-computer interactive touch screen, the operation interface is simple and intuitive
With intelligent functions such as solder joint recognition and automatic optimization of welding parameters
Welding system:
Integrated with high-precision temperature sensor and welding power supply
Supports multiple welding modes such as constant temperature, constant current, and constant voltage
Programmable welding parameters to ensure stable and reliable welding quality
Vision system:
Equipped with a high-definition CCD camera to achieve automatic positioning of solder joints
Combined with machine vision algorithms, it can detect the status of solder joints and feedback adjustments
Automatically correct the welding path to adapt to changes in the position of different solder joints
Application scenarios:
Suitable for the welding production of small and medium-sized electronic products
Can be applied to the welding of various electronic components such as SMT, DIP, PCB, etc.
Especially suitable for scenarios with high requirements for welding quality and production efficiency
Features:
1, With display which can fully watching the working process.
2, Two working station and fast swtichable soldering system, which can eliminate the time wasted on the assembly and dis-assembly fixtures.
3, Independently developed intelligent control system, it has powerful functions and simple operation interface.
4, With strong processlibrary, programming is simpler and faster.
5, Optional universal auxiliary fixture part.Fixtures can be formed on the site easily and quickly.
6, High quality and reliable mechanical structure,dont need maintenance.
7, High power heating controller ensures teh stability of continuous welding. Full time monitoring and control of temperature is processed by the robot control system.
8, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.
9, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
| Model | HS-S5331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y1/Y2/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y1/Y2/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 60kg |
| Machine dimension | 680*585*800mm |
