| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

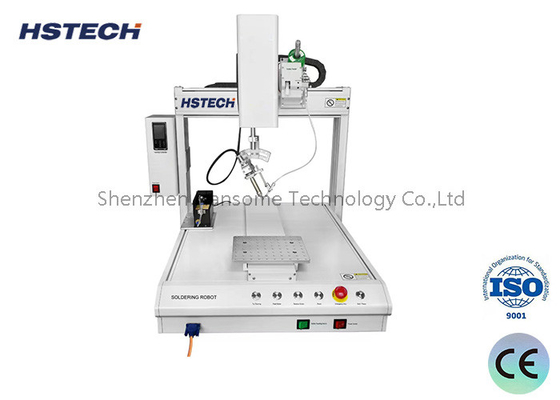

Teaching Pendant 220V Rotation Axis Automatic Solder Wire Soldering Robot
Introduction

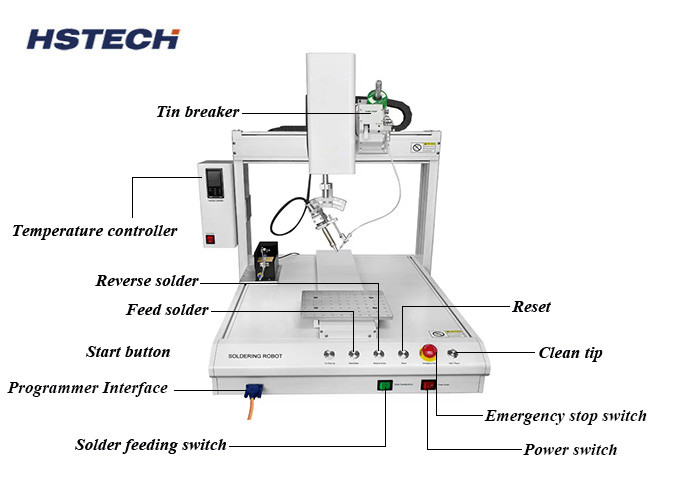

This automatic soldering machine employs a 3-axis moving system with a single, rotatable soldering head. Primarily utilized in electronics manufacturing, it excels at blind soldering tasks that reflow and wave soldering methods cannot accomplish. Ideal for mixed circuit boards, heat-sensitive components, and delicate devices during SMT back-end processing, it also finds widespread application in PCB soldering wire, charger plugs, connectors, DC terminals, LED strip light soldering, and various other industries.
Features
1.4-Axis operation, including X/Y/Z movement and R rotation, facilitates multi-angle soldering.
2.Nitrogen-free soldering iron ensures safety and environmental protection.
3.Adjustable soldering head protects PCB and components from damage.
4.Key position alignment via iron head base point, automated point generation & data setting.
5.High-precision stepper motor, timing belt, and advanced algorithms enhance positioning accuracy & repeatability.
6.Automatic cleaning function stabilizes soldering & prolongs iron lifespan.
7.Handheld LCD teaching pendant simplifies programming & learning.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
