| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
Single Doubel Soldering Iron / Tip Rotation Available Desktop Soldering Machine
Introduction

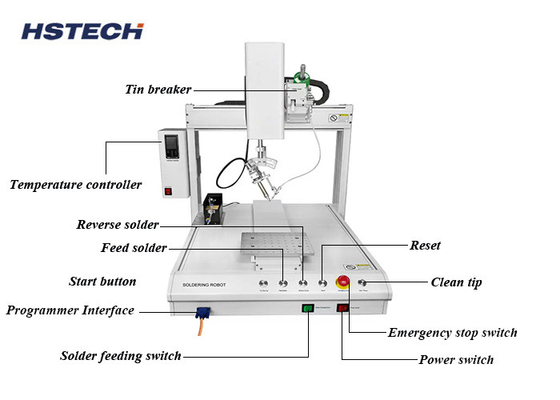

This automatic desktop type soldering machine is 4 axis moving system, single soldering iron with XYZ travel range 300*300*100mm, also rotation available. This machine fixed the product by the customized fixtures, manual programing with the teach pandent box,it's a economic and cost-effective soldering machine.
Application
1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
Features

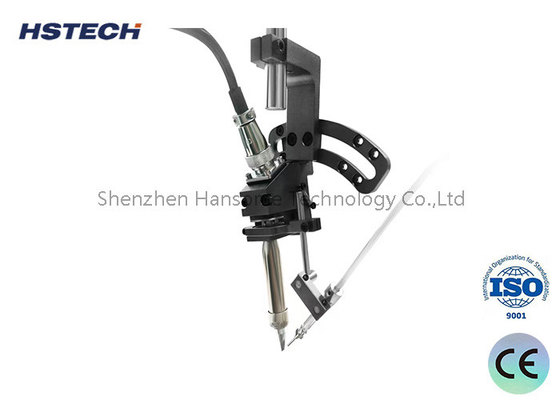

1.4-Axis operation for flexible multi-angle soldering.
2.Nitrogen-free iron for safety & environmental compatibility.
3.Multi-directional head adjustment protects PCBs & components.
4.Auto-key point generation simplifies iron head alignment & programming.
5.High-precision stepper motor & timing belt for accurate, repeatable movements.
6.Auto-cleaning function ensures stability & extends iron life.
7.Intuitive programming with handheld LCD teaching pendant.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
