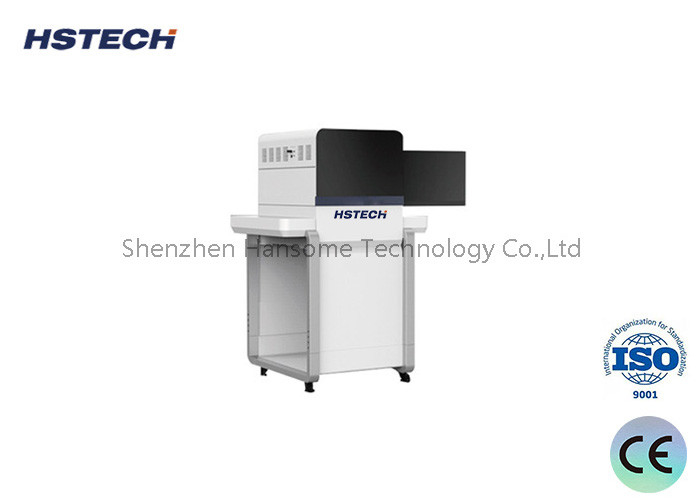

Linear Guide Solder Pen Iron Tin Floor Standing Robotic Soldering Machine
Introduction

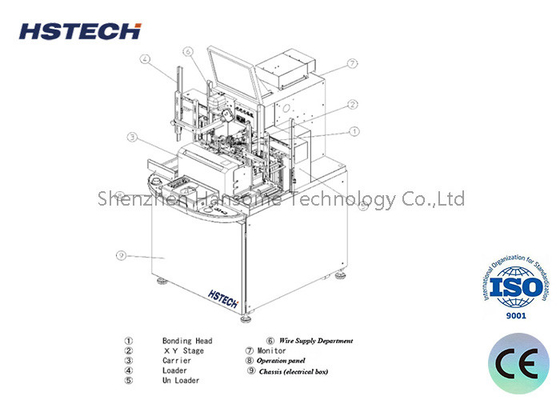

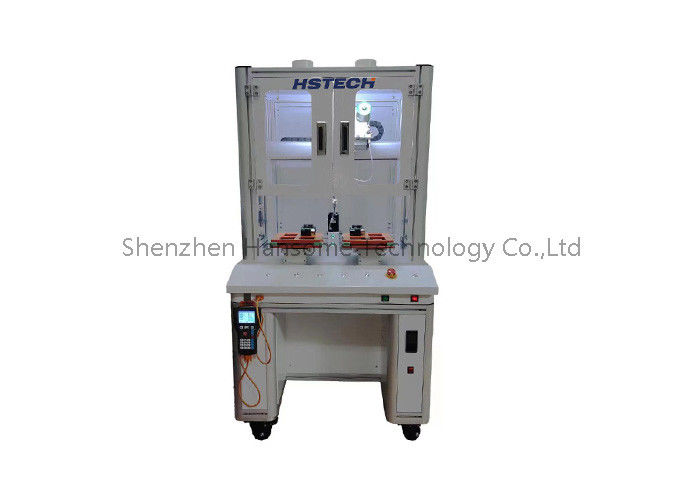

This model automatic soldering machine is the floor standing model soldering robot, different from the desktop soldering machine, it's a more convenient and flexible soldering robot. This machine adopts the 5 axis working system, with double soldering platform, single soldering iron/tip
morving range 500x300x300x100mm. The machine suitable for many kinds of PCBA welding, automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.
Features
1, Rugged metal frame, floor-standing design with dual platform functionality.
2, 5-axis operation including R-rotation axis for versatility.
3, 500x300x300mm travel distance, customizable to suit customer needs.
4, Single soldering iron with adjustable range or optional double/triple configuration.
5, Supports point, drag welding, & other welding techniques.
6, Pendant programming with manual point setting & CAD drawing import capability.
7, Equipped with Hiwin Linear Guides for precision movement.
8, Controlled by Stepper motor & timing belt for reliable operation.
Specification
| Model | HS-S5331R | HS-S6331R | |
| Voltage | AC110V/220V,50/60Hz | ||
| X/Y1/Y2/Z working range | 500*300*300*100mm | 600*300*300*100mm | |
| R axis | 360degree | ||
| X/Y/Z moving speed | max 300mm/s | ||
| Driven system | Stepper motor,timing belt | ||
| Linear guide | Taiwan brand high precison guide | ||
| Repeat accuracy | ±0.02mm | ||
| Programing | Teach pendant | ||
| Control system | Control board | ||
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
||
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
||
| Document support | CAD | ||
| Iron Tin cleaning | Air cleaning/pneumatic | ||
| External interface | USB+RS232 | ||
| Soldering method | Point/drag soldering | ||
| Weight | 65kg | 70kg | |
| Machine dimension |
715*585*800mm |
815*685*800mm | |
Main machine configuration
1, Double soldering Iron, double Y working platform
2, Handheld teach pendant programmer
3, Heating controller
4, Broken tin controller
5, Solder pen assembly
6, Welding tip
7, Tin out components
8, Cleaning box
