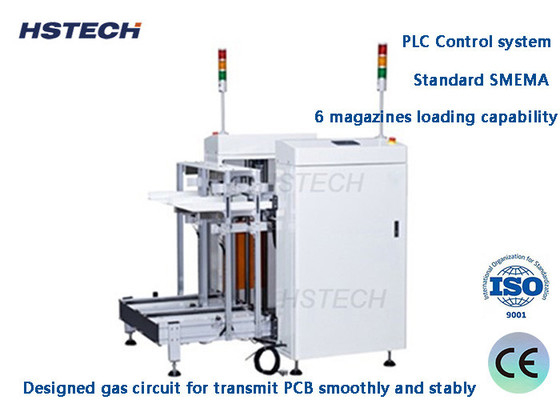

Flexible Operation PLC Control Double Track Unloader 6 Magazines Loading Capability PCB Unloader

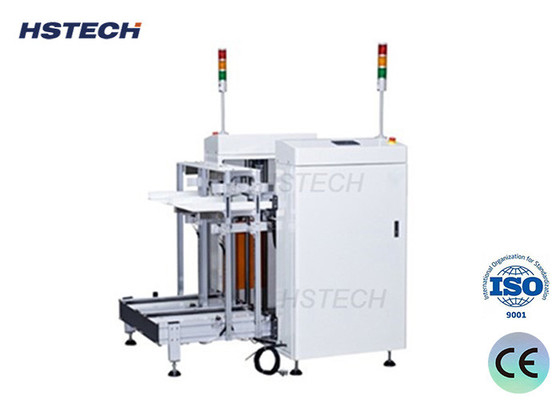

Double Track Unloader:
This unit is used to collect PCBs into two magazines from dual track equipment at the same time.
Definition and function:
Double-track unloader is a special equipment for automatic unloading of goods.
It uses two independent conveyor belts or tracks to achieve efficient unloading of two unloading areas at the same time.
Working principle:
Double-track unloader consists of two parallel conveyor belts or slide rails, which operate independently.
The goods are transported in through one end and unloaded to two unloading areas respectively by two tracks.
The running speed and operation of the two tracks can be controlled independently to achieve efficient unloading in both directions.
Main features:
Efficient unloading: two cargo loading areas can be unloaded at the same time, greatly improving efficiency.
Strong flexibility: the two tracks can be controlled independently to adapt to different loading conditions.
Space saving: small space occupation, suitable for small storage environment.
High degree of automation: fully automated operation can be achieved without human participation.
Application scenarios:
Cargo loading and unloading operations: such as container unloading, large cargo unloading, etc.
Warehousing and logistics center: efficient completion of inbound and outbound operations.
Port terminal: complete the loading and unloading operations of ships and containers.
Factory production line: cooperate with the production line to realize automatic unloading of raw materials or finished products.
Features:
1, PLC Control system
2, Dual tracks and dual lift platforms design
3, 6 magazines loading capability
4, Designed gas circuit for transmit PCB smoothly and stably
5, Standard SMEMA
Specification:
| Type | DU-250 | DU-300 | DU-400 | DU-500 |
| Power Supply | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz |
| Air Supply | 5kgf/C M2 | 5kgf/C M2 | 5kgf/C M2 | 5kgf/C M2 |
| PCB Size(mm) | 350*50~250 | 445*50~330 | 530*50~390 | 535*50~460 |
| PCB Direction | left to right or right to left | left to right or right to left | left to right or right to left | left to right or right to left |
| Magazine Size(mm) | 335*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Step pitches(mm) | 10,20,30,40 | 10,20,30,40 | 10,20,30,40 | 10,20,30,40 |
| Transport Height(mm) | 900±20 | 900±20 | 900±20 | 900±20 |
| Transmission Speed | 6m/S | 10m/S | 10m/S | 10m/S |
| Main Motor Power | 440W | 440W | 440W | 440W |
| Machine Size(mm) | 1510*1530*1250 | 1910*1630*1250 | 2160*1760*1250 | 2160*1900*1250 |
| Weight(kgs) | 320 | 350 | 380 | 410 |
| Double Track Unloader | |||
