| Brand Name: | HSTECH |
| Model Number: | HS-S441S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

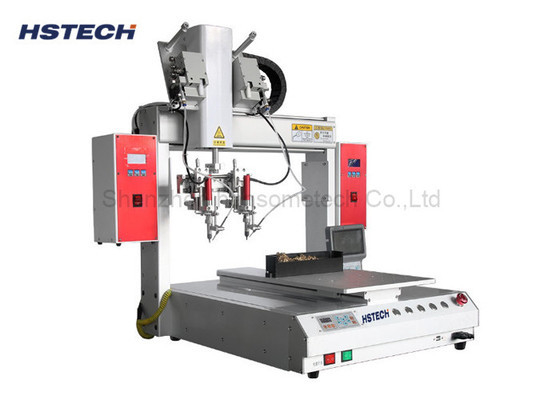

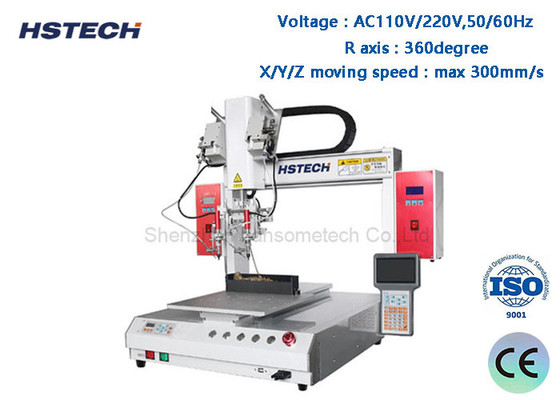

Single Y Working Platform Automatic Soldering Machine With Double Soldering Iron
Automatic Desktop Soldering Robot:
This automatic soldering machine is double soldering head machine, customized moving range to 400mm. The machine is used to save labor, use automatic soldering method to instead traditional manual soldering. During the operation, only need one operator to loading and unloading the product after setting the program.
With the machine not only can improve the production efficiency, but also improve the soldering quality, it's a more precision and flexible soldering method.
We have many options for the soldering machine, axis from 3 axis to max 8 axis, if rotation or not, and working platform single or dual, all depends on your requirement.
High-precision positioning
Adopting servo motor drive, the Y-axis work platform can achieve accurate positioning accuracy of ±0.05mm.
Equipped with high-resolution photoelectric encoder to ensure stable and reliable positioning.
Flexible welding
The work platform supports independent motion control of X/Y/Z axes.
It can flexibly weld PCBA boards of different sizes and shapes.
Fully automated
It has functions such as automatic loading, welding, and unloading to achieve full automation of the production process.
No human involvement is required, which greatly improves production efficiency and consistency.
Welding quality
Adopt constant temperature welding core and precise welding parameter control to ensure stable solder joint quality.
The solder joint has beautiful appearance, smooth transition, and no overflow soldering occurs.
Intelligent control
Equipped with human-computer interaction interface, welding parameters and process flow can be programmed.
Built-in fault diagnosis system can monitor the operation status of the equipment in real time.
Efficient energy saving
Adopting servo motor drive and intelligent control technology to greatly reduce energy consumption.
At the same time, it has the characteristics of low maintenance cost.
Features:
1, Double soldering Iron, single Y working platform.
2, Handheld teach pendant programmer.
3, Heating controller.
4, Broken tin controller.
5, Solder pen assembly.
6, Welding tip.
7, Tin out components
Specification:
| Model | HS-S441S | HS-S551S | HS-S661S |
| Voltage | AC110V/220V,50/60Hz | ||
| X/Y/Z working range | 400*400*100mm | 500*500*100mm | 600*600*100mm |
| R axis | none | ||
| X/Y/Z moving speed | max 300mm/s | ||
| Driven system | Stepper motor,timing belt | ||
| Linear guide | Taiwan brand high precison guide | ||
| Repeat accuracy | ±0.02mm | ||
| Programing | Teach pendant | ||
| Control system | Control board | ||
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
||
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
||
| Document support | CAD,CorelDRAW | ||
| Iron Tin cleaning | Air cleaning/pneumatic | ||
| External interface | USB+RS232 | ||
| Soldering method | Point/drag soldering | ||
| Weight | 40kg | 50kg | 55kg |
| Machine dimension | 615*685*800mm | 715*715*800mm | 815*815*800mm |
