Multiple Tanks Operation for Temperature Recovery in Solder Paste Thawing Machine
Automatic Solder Paste Thawing Machine:
Automatic solder paste thawing machine, also called solder paste aging machine, with the timer, the machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after taken out off the refrigerated room. It is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.
Function
1. Fully automatic timed solder paste rewarming machine. One machine has multiple slots and can intelligently reheat multiple cans of solder paste at the same time to ensure the activity of the solder paste; the steel plate of this machine has a baked-painted appearance, with a smooth and tidy surface, fashionable and beautiful.
2. The machine is assembled and produced using imported electrical components;
3. Each can of solder paste is placed in a slot with independent time control. Once the time is set, the solder paste slot will automatically lock. The door cannot be opened before the timer expires. When the set temperature recovery time is reached, the slot will be locked. It will unlock automatically.
4. The machine can be operated with multiple tanks for temperature recovery, and each slot can hold 500G solder paste tanks.
5.Heating and thawing: The equipment heats the refrigerated solder paste to a temperature suitable for use through heating elements or other heating methods, and automatically completes the thawing process.
6.Temperature control: The equipment is equipped with a temperature sensor and a control system, which can accurately control the thawing temperature of the solder paste to avoid excessive heating and degradation of solder performance.
7.Automated operation: Without manual intervention, the equipment can automatically detect the temperature state of the solder paste and complete the entire thawing process. Greatly improve the thawing efficiency.
8.Intelligent management: The equipment can record and display the thawing state of the solder paste, and can be linked with the production management system to optimize production scheduling.
9.Energy saving and environmental protection: Energy-saving heating technology is used to reduce energy consumption. At the same time, no manual operation is required, which improves the safety of the working environment.
10.Versatility: It can thaw multiple groups of solder paste at the same time, or automatically switch different types of solder paste according to production needs.
Precise temperature control
The machine can accurately control the thawing temperature of the solder paste, usually between 20-30°C.
The temperature fluctuation range is less than ±0.5°C, ensuring that the performance of the solder paste is not affected.
Uniform heating
Use radiation heating or hot air circulation to ensure that the overall temperature of the solder paste rises evenly.
Avoid local overheating or cold areas to ensure consistent solder paste status.
Programmable control
It has intelligent program control functions such as timed thawing and automatic heat preservation.
Users can set parameters such as thawing time and temperature according to their needs.
Efficient energy saving
The heat insulation design can minimize energy consumption and heat loss.
Compared with traditional thawing methods, power consumption can be reduced by more than 50%.
Safe and reliable
Built-in temperature/time monitoring alarm function to avoid overheating or long thawing time.
Adopt multiple safety protection measures such as anti-electric shock and anti-foreign object entry.
Easy to operate
Equipped with a user-friendly control panel, the setting is simple and intuitive.
It can support the thawing of various types of solder paste to meet different production needs.
Specification
| Machine name | Fully automatic solder paste reheating machine | product brand |
| Operating mode | voltage mode | Product net weight: 16kg |
| Operating Voltage | AC220V 60HZ | Product material: steel plate spray paint |
| Product Size |
Four slots L670*W220*H335mm Tank size: length 150*depth 100*height 110mm |
|
| Ability to work | The solder paste and red glue reheating machine/defrosting machine can be used with solder paste in the slot and needle-type red glue (all small red glue with a total length of less than 120MM can be used), and the solder paste and red glue can be switched intelligently. New and old customers can choose from 4/5/6/8/10/12/14 workstations to 30 workstations. Non-standard can be customized. Supports 250G/500G solder paste, total length less than 120MM needle tube red glue. | |

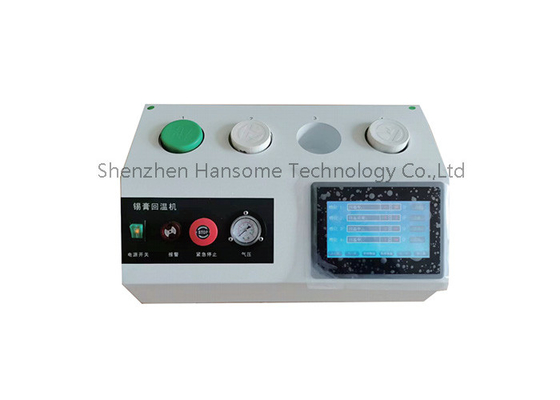

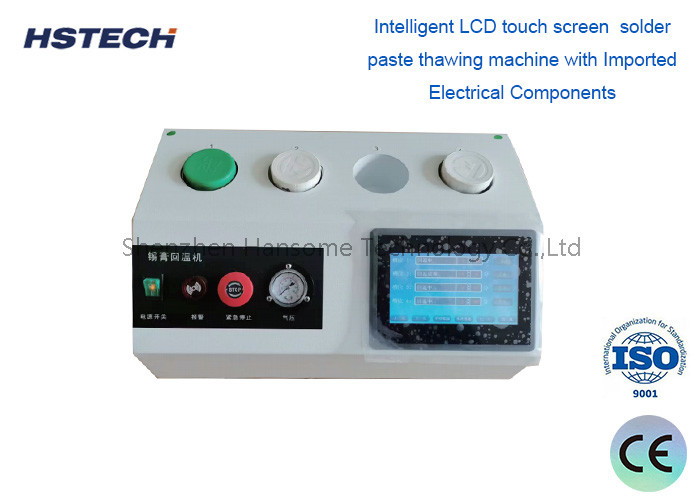

Product physical picture
| Automatic Solder Paste Thawing Machine | |||
