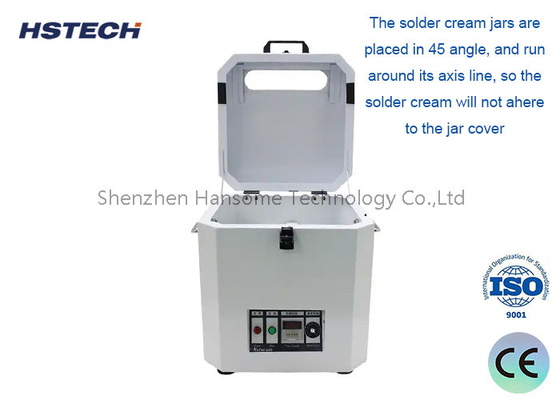

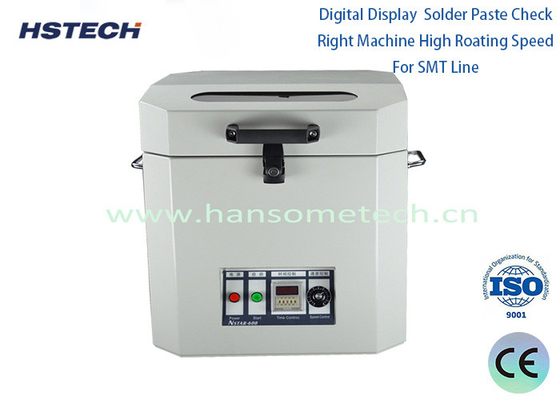

Fully Automatic SMT Solder Paste Mixer Multi-Functional Solder Paste Machine For PCB Assembly Line

 Fully Automatic SMT Solder Paste Mixer Multi-Functional Solder Paste Machine For PCB Assembly Line

Solder Paste Reheating Machine is a device used to temper and restore solder paste viscosity. It is commonly used in the electronics manufacturing industry in surface mount (SMT) processes to restore the fluidity and viscosity of solder paste to ensure soldering quality and reliability.

The following are some features and working principles of solder paste reheating machines:

Temperature control: The solder paste reheating machine has a precise temperature control system that can increase the temperature of the solder paste by heating it, usually between 60°C and 150°C. Accuracy of temperature control is critical to restoring solder paste viscosity and fluidity.

Uniform temperature distribution: Solder paste reheating machines usually use special heating elements and temperature sensors to ensure that the temperature is evenly distributed throughout the recuperation chamber and avoid the impact of temperature gradients on solder paste performance.

Control time and speed: The reheating machine can adjust the reheating time and speed as needed to adapt to different types and specifications of solder paste. A higher temperature recovery speed can shorten the production cycle, but it is necessary to ensure that the solder paste is fully recovered.

Cooling function: Some solder paste reheating machines also have a cooling function, which can quickly cool the solder paste after reheating to solidify the solder joints and improve production efficiency.

Automated control: Solder paste reheating machines usually have automated control functions that can preset temperature and time parameters, and monitor and adjust temperature changes during the reheating process.

smt solder paste mixer Advantage:

Unique contoured shape, generous appearance and practical, which is made by advanced coating process workmanship.
Mixing principle is on the basis of Motor rotation and revolution mode of agitation, no need to defrost the paste. Need to recovery the paste in short time, then the solder can be used after stirring well and deforming.

Okay for all brands of 500g paste, mixing with 2 cans in one time, which can save time and efficient.

Paste box no need to be opened during stirring to avoid oxidation and water vapor absorption.

Closed stirring can fix running time, make sure stability of paste softness, and by stirring old and new paste can make new active
paste.

Enjoy the high degree of automation, stable performance, easy to operate, high safety factor, and simple in maintenance.

Applies to Omron time relay controller, reliable and easy to operate.

Feature of smt solder paste mixer

1.put the machine on a solid work surface and the connect power. Turn on swith after stabling the machine
2.Open the cover, and put two same weight bottle of solder past or ink into the barrel fixture.
3. Work time setting : the time can be set from 0.1-9.9 min through press the red button on the panel. Generally, it set at 3
minutes or so . If the solder paste is froze to low and stored for too long, the stir time should be increase to appropriate.
4. Press the start switch, the machine starts running when the set time is reached, the machine will automatically stop and
whistle. If there is abnormal noise during operation, you should immediately press stop switch to check. (Note: do not open the
cover before the machine stopping moving to avoid danger
