| Brand Name: | HSTECH |
| Model Number: | CT-03 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |
Anti-Static Universal SMT Carrier Tape Embossed Carrier Tapes With 4-104mm Width
Embossed Carrier Tape:
Embossed Carrier Tape is a carrier tape product used for packaging and transportation of electronic components.
It mainly has the following features and uses:
Features:
The surface exhibits regular raised patterns (Embossed)
The material is usually polystyrene (PS) or polycarbonate (PC)
Has good rigidity and heat resistance
The surface is smooth and smooth, which is conducive to the adsorption and placement of components.
Effect:
Packaging carriers that provide protection, positioning and dosing for electronic components
Combined with the vacuum nozzle, it is convenient for automated equipment to pick and place components.
During storage and transportation, prevent components from being damaged by impact, static electricity, etc.
The main purpose:
SMT production line: as packaging carrier tape for SMD components
Semiconductor industry: used for packaging of integrated circuits, discrete devices, etc.
Optoelectronic field: suitable for LED, photodiode and other optoelectronic components
Design Features:
Parameters such as bump pattern size and spacing vary from component to component and need to be customized.
Common convex shapes include circles, rectangles, strips, etc.
Targeted design based on component size and characteristics
Use electrostatic shielding materials to prevent components from being damaged by static electricity
Requirements:
Must strictly match component size, pick and place equipment, etc.
Avoid exposure, moisture, high temperature and other unfavorable environments during storage and transportation
Before use, check whether the carrier tape is complete and free of damage, deformation, etc.
Carrier tape specification
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |

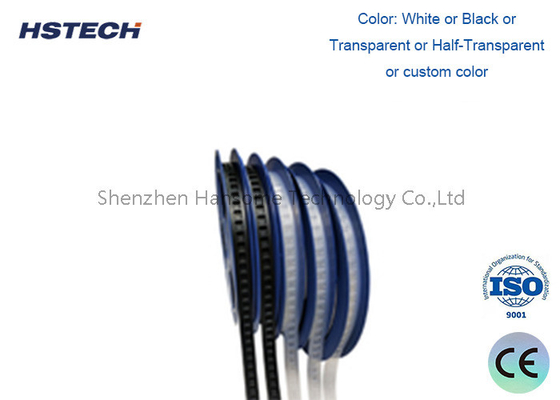

| Color | Black, Transparent |
| Width | 4-104mm |
| Thickness | Except the standard size, we also customs |
Carrier tape size and it matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |

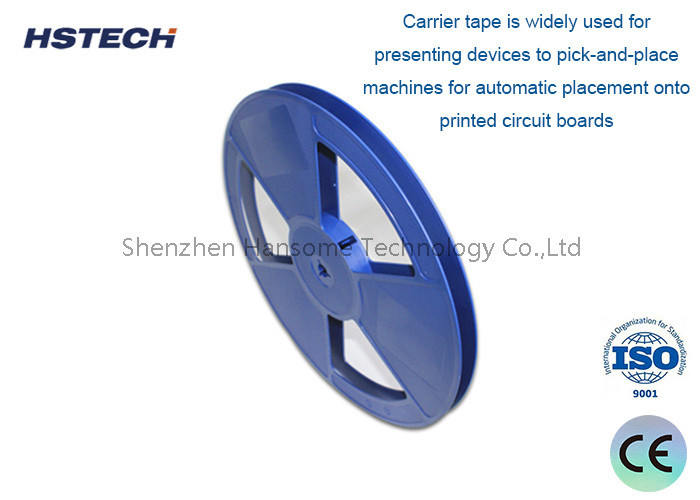

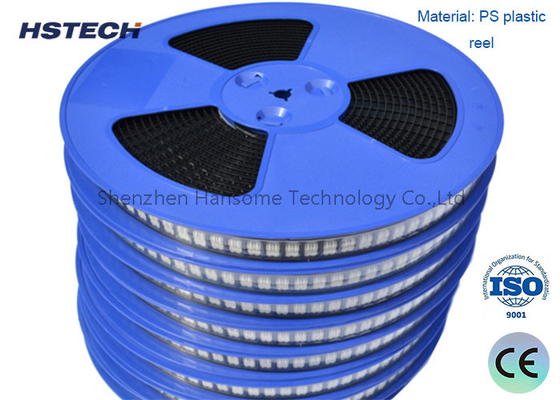

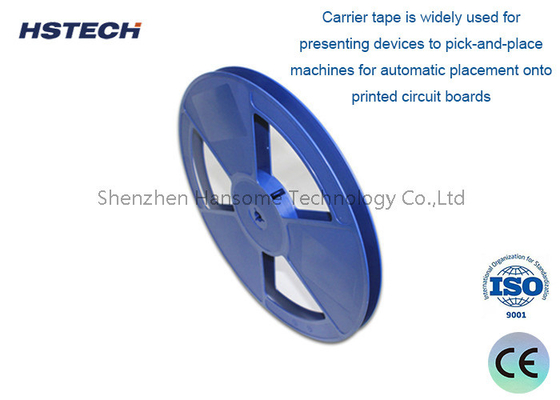

Reels
We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements
Application
The embossed carrier tapes are widely used in the surface packaging, carrying and transmission of the surface mounting equipments,for example, the mini PCB , IC ,LED chip, Low Power LEDs, Mid/High Power Packages, Domed Packages, LED Modules, Lenses, LED Die connectors, diodes, dynatrons, resistors, conductors, capacitors, fuses, switches, relays, resonators, radome, socket component,etc.
We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.
