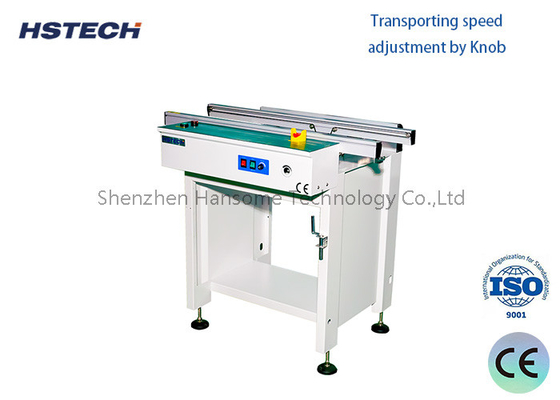

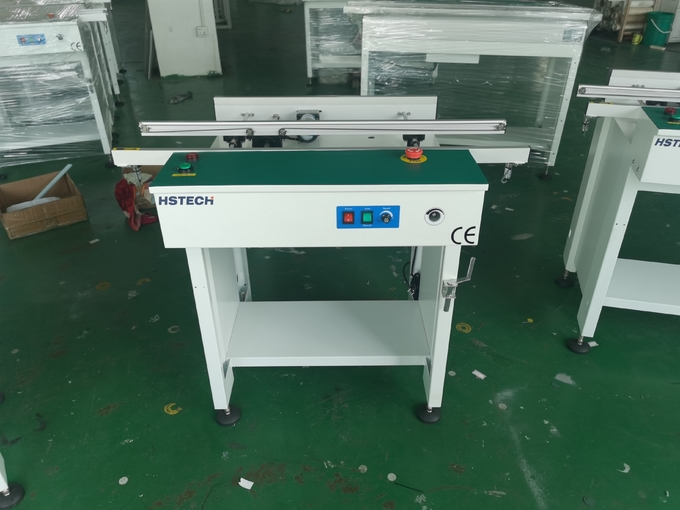

Flexible SMT Conveyor PCB Handling Equipment For SMT Production Line Connection Station

 Flexible SMT Conveyor PCB Handling Equipment for SMT Production Line Connection Station

The function of the SMT PCB Handling Equipment connection station is to connect between SMT production lines. It can also be used for PCB buffering, inspection, testing or manual insertion of electronic components.

The docking station generally includes: a frame and two parallel rotating conveyor belts installed on the frame. The circuit boards are placed on the two conveyor belts for transportation. The existing conveyor belts are generally fixed in position on the frame, so that the two The width of the circuit boards conveyed on the conveyor belt is limited, which is not conducive to conveying circuit boards of different sizes, making the applicability of the docking station low.

According to the function, the connection station can be divided into a connection station with a light frame, a fully automatic connection station, a dust cover connection station, a cold air cover connection station and a screening connection station. All types are used for connection and buffering between machines in the S M T production line and serve as a passing board.

Continuous transmission:
SMT Conveyor can continuously transmit PCB boards to the subsequent mounting process.
The conveyor belt design is optimized according to the production line speed and PCB size to ensure stable and efficient transmission.

Precise positioning:
The conveyor belt is equipped with a precise positioning device to accurately position the PCB board to ensure the precise operation of the subsequent process.
Automatic positioning and alignment calibration are achieved through detection technologies such as photoelectric sensors.

Environmental control:
The conveyor belt is usually installed in a clean room to control environmental parameters such as temperature and humidity.
Ensure that the PCB board is mounted in the best environment to improve product quality.

Multi-function upgrade:
Some SMT Conveyors can integrate additional functions such as automatic loading and unloading and PCB flipping.
Meet the requirements of different production lines for the degree of automation.

Intelligent monitoring:
The conveyor belt can interact with the production management system for data and remote monitoring.
Real-time collection of data such as transmission status and fault information is convenient for optimized management.

High reliability:
Adopts a stable and durable mechanical structure and electronic control system design.
Equipped with automatic fault detection and alarm functions to ensure the continuous and stable operation of the production line.

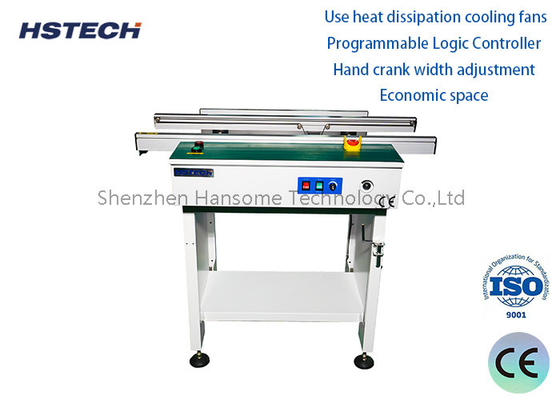

Features

• programmable logic controller
• Hand crank width adjustment
• Standard with inspection sensor and button
• Use stainless steel screw,smooth and parallel width adjustment
• Left to right travel,or right to left,front rail fiexd
• ESD working table
• Height adjustable and stable feet cup location
• Speed control
• SMEMA compatible

Specification

Technical Parameters

Summary: The connecting station is a device with very low functions and intelligence in the SMT production line, and its structure is relatively simple. Generally speaking, the design of SMT production lines is very compact and reasonable, and it is not necessary to use equipment such as docking stations. If two production lines need to be paralleled, a docking station will be needed to help transfer PCB boards; when the transmission requirements of a certain device in the production line do not meet standards, a docking station can also be used to assist.
