| Brand Name: | HSTECH |
| Model Number: | HS-T350 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

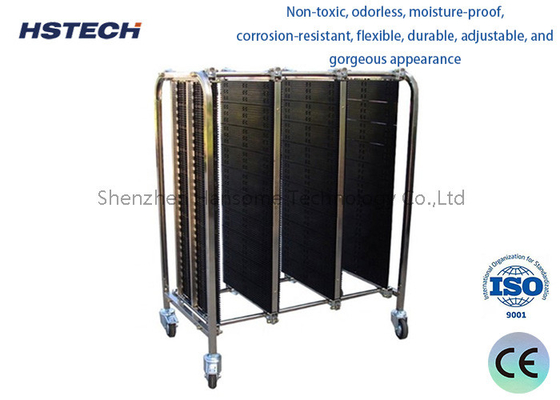

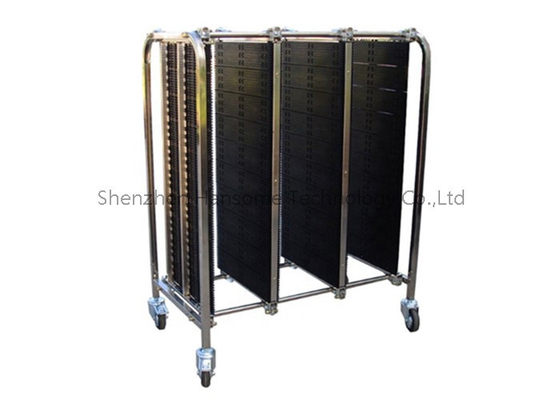

Adjustable Stainless Steel Trolley Anti-Static PCB Turnover Cart For SMT ESD PCBS
PCB Storage Turnover Car:
Anti-static turnover trolley is also called PCB board turnover cart, transfer cart, storage truck, etc.
It's widely used in SMT processing, machinery, automotive, lighting industry, electronics and other production enterprises. It's easy to store, convenient for PCB board turnover, neatly stacked, and easy to manage the PCBs.The turnonver made of anti-static materials and stable stainless steel structure, equipped with 4pcs 360degree rotation wheels, very convenient to transportation, transfer, storage, it's parts of smart materials management in the SMT production factories.
Specification
| Model | HS-T350 |
| Overal size | 850*540*1260mm, |
| Suitable PCB size | max width 350mm,or optional 460mm |
| Standard layer | 3 layers |
| PCB storage capacity | Standard max store 300pcs |
| Side Plate Material | PP compound with conductive fiber |
| Side Plate Type | Injection mold |
| Trolley frame rack materia | Stainless steel |
| Trolley frame rack | quare type |
| Width adjust method | Manual/screw adjusment |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 106Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 30kg |
Features
1, Non-toxic, odorless, moisture-proof, corrosion-resistant, flexible, durable, adjustable, and gorgeous appearance.
2, The PCB trolley max can load 100kgs, also available for higher requirement depends on customer.
3, Anti-static surface resistance of 10 to the power of 6 to 10 of the 9th power,surface conductive resistance of 10 below the power of 4 to 10 to the 6th power.
4, Each layer has marked the number, easy management.
5, Made of all stainless steel, and the accessories are complete and diversified, and the production capacity is strong. The frame size and the number of rail slots can be customized according to customer requirements.
6, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
7, Standard max can store 300pcs, customized is available.
8, The whole car can be moved, the wheels are anti-static, and four wheels (two with brakes).
9, Easy to install and disassembly, convenient for replacement and maintenance.
Automatic flipping: The equipment can automatically complete the flipping operation of PCB boards without manual intervention. Efficient and accurate flipping action is achieved through motor drive and sensor control.
Multi-layer storage: The equipment adopts a multi-layer nest design, which can store multiple batches of PCB boards at the same time. Each storage layer can be controlled independently to achieve classified storage of different batches of PCB boards.
Fast flipping: The equipment has a high-speed flipping action, and the flipping time of a single PCB board only takes a few seconds. The efficiency of PCB storage and placement is greatly improved.
Safe and reliable: The equipment is equipped with multiple safety protection measures, such as photoelectric protection, emergency stop switch, etc. Stable and durable mechanical structure can withstand long-term use in industrial environments.
Intelligent control: It has an automated control system and can be operated through a human-machine interface such as a touch screen. Supports data interaction and remote monitoring with the production line system.
Flexible configuration: It can be customized according to the specific needs of customers, and the number of layers, size and other parameters can be adjusted. Meet the storage and processing requirements of PCB boards of different specifications.
Application
This anti-static PCB turnover car is widely used in SMT processing, machinery, automotive, home appliances, light industry, electronics and other production enterprises. It can resist acid and alkali, oil, dirt, non-toxic and tasteless. It can be used to store PCB board, easy to clean, and convenient for PCB board turnover. Stacked neatly for easy management. Its reasonable design and excellent quality are suitable for transportation, distribution, storage, distribution and processing in SMT factory logistics.
| PCB Storage Turnover Car | |||
