| Brand Name: | HSTECH |
| Model Number: | HS-NK250 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

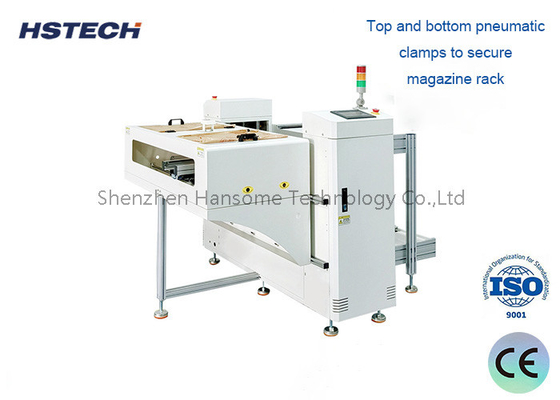

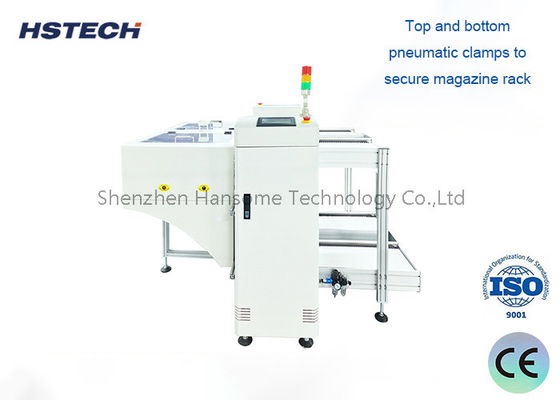

Dual-rail Unloader Easy Operation Smt Vertical Unloader Pcb Ng OK Unloader With Touch Screen
NG OK PCB Unloader:
NG OK PCB Unloader is a device used in automated electronic manufacturing processes to unload defective (NG) and good (OK) printed circuit boards (PCBs) from the production line.
The main function of NG OK PCB Unloader is to separate unqualified PCB (NG) and qualified PCB (OK) based on the judgment results of the electronic detection system, and move them out of the production line for subsequent processing and classification.
NG OK PCB Unloader features and functions:
Automatic unloading:
The equipment has a fully automatic PCB unloading function, without manual operation.
The sensor detects the PCB status and automatically unloads the unqualified and qualified PCB boards by classification.
Dual track design:
The equipment adopts a dual track structure, one for unloading unqualified PCB boards and the other for unloading qualified PCB boards.
Unqualified and qualified PCBs can be unloaded by classification at the same time.
High-efficiency operation:
Automatic unloading greatly improves the processing efficiency of PCB boards and reduces manual operation links.
Unloading speed and accuracy can be flexibly adjusted according to the actual needs of the production line.
Integrated detection:
The equipment has a built-in PCB status detection module, which can automatically identify and distinguish unqualified and qualified PCB boards.
Detection indicators include multiple parameters such as size, defects, component assembly status, etc.
Data recording:
The equipment can record the detection data of each batch of PCBs, providing a basis for subsequent analysis and optimization.
Relevant data reports can be obtained and analyzed through computer software.
Flexible interface:
Supports communication interface docking with production line equipment to achieve information exchange and centralized management.
Personalized control programs and interfaces can be customized according to customer needs
Specification
| Model | HS-NK |
| PCB dimension | (50*50)~(350*250)mm |
| Magazine size | 355*320*565mm |
| PCB loading time | Around 6s |
| Magazine replace time | 30s |
| Power supply | AC100-230V,single Phase,max300A |
| Air supply | 4-6 bar, Max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L to R,or R to L9(optional) |
| PCB thickness | Min 0.4mm |
| Magazine qty | top 1pc, down 1 pc, or customized |
| Step pitch options | 1-4(10mm pitch) |
| Machine dimension | 1460*1500*1200mm |
| Weight | Approx 210kg |
Features
1, True color touch screen control
2, Panasonic PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
