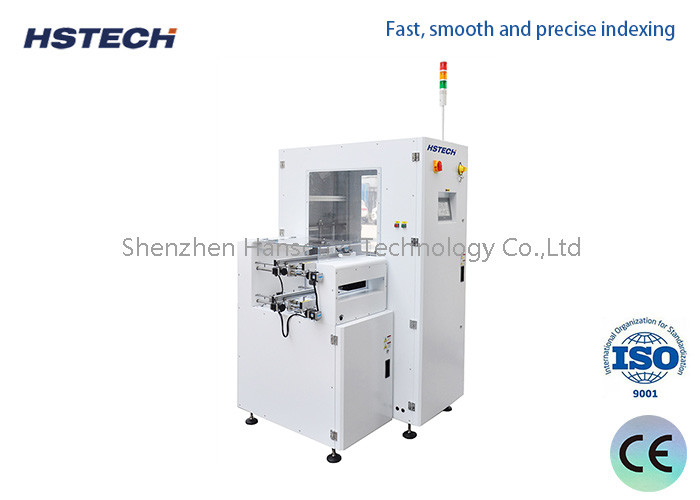

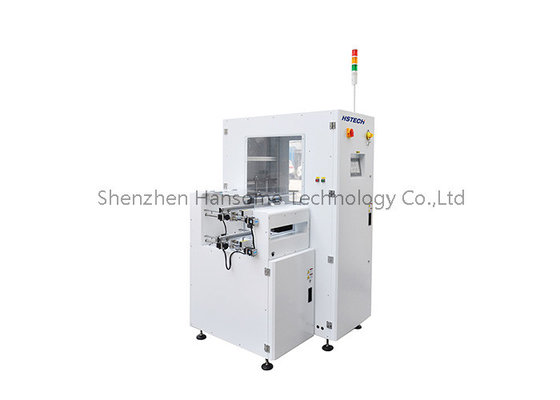

Easy Operation Smt Vertical Buffer Conveyor Pcb Ng Buffer With Touch Screen
PCB Buffer:
Serves as a buffer device between SPI, AOI and other inspection equipment and main mounting equipment.
It can temporarily store and buffer PCB boards to achieve seamless connection of production line processes.
It helps SMT production lines achieve automation and improve production efficiency.
Features:
1. Use friendly soft touch LED membrane control panel.
2. FIFO,LIFO,Loader, Unloader,Reject mode selected.
3. Fast, smooth and precise indexing.
4. Pneumatic clamps provided for magazine alignment.
5. Pneumatic pusher’s pressure regulated.
6. Threshold’s system provided.
7. Additional magazines buffering capacity available upon request.
8. SMEMA compatible.
Isolation and buffering:
It can isolate the input and output parts of the circuit to prevent mutual interference.
It provides buffering function to prevent the circuit load from affecting the driving circuit.
Signal amplification:
It can amplify the input signal of the circuit and improve the signal strength.
It ensures signal integrity and avoids signal attenuation caused by load.
Impedance matching:
It realizes impedance matching between various parts of the circuit and improves signal transmission efficiency.
It matches circuit parts with different characteristic impedances to avoid problems such as signal reflection.
Level conversion:
It can complete the conversion between different voltage levels, such as TTL level and CMOS level.
It ensures that various parts of the circuit can work normally and avoid voltage mismatch problems.
Common PCB Buffer circuits include:
Open collector buffer
Tri-state buffer
Differential buffer
Level conversion buffer
Technical Details:
| Model | HS-GH350 |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Board cycle time | Approx 20 seconds |
| Magazine change over time | Approx 30seconds |
| Track fixed side | Front side |
| Operation side | Front side |
| PCB thickness | Min 0.6mm |
| Pitch selection | 1-4(10mm pitch) |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 4-6Bar |
| Air consumption | Max 10L/min |
| Number of magazines | Upper:1 magazine, Bottom side:1 magazines |
| Signal | SMEMA |
| Options | 1, Touch screen control mode. 2, Automatic width adjustment. 3, Magazines quantity up to customer requirement. |
Specification:
| Model | HS-HC250S | HS-HC330M | HS-HC390L | HS-HC460XL |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Magazine size | 355*320*563mm | 460*400*563 | 535*460*570mm | 535*530*570mm |
| Machine dimension | 1250*1200*1600mm | 1460*1360*1600mm | 1610*1480*1600mm | 1610*1620*1600mm |
| Weight | 170kg | 230kg | 300kg | 330kg |
Application areas:
As a buffer device for connecting equipment:
Import PCB boards from upstream inspection equipment (such as SPI, AOI) to downstream placement equipment.
Achieve seamless connection and process balance between various processes of the production line.
Avoid production bottlenecks and improve overall production efficiency.
PCB board temporary storage function:
Can temporarily store qualified PCB boards for subsequent placement.
Buffer the production rhythm of different processes to ensure continuous and stable operation of downstream equipment.
Improve the overall capacity utilization of the production line.
Optimize production scheduling:
Rationally schedule PCB boards into the buffer zone according to production plans and real-time information.
Ensure that key equipment is fully utilized to avoid waiting or idling.
Improve the flexibility and responsiveness of the production line.
Improve the level of production automation:
No need to manually transfer PCB boards, realize automatic transmission between equipment.
Greatly reduce manual operations and reduce the risk of human errors.
It is conducive to the full automation integration of SMT production lines.
| PCB Buffer | |||
