5 Axis Double Platform Floor-standing Automatic Soldering Robot for Pcb Soldeing

5 Axis Double Platform Floor-standing Automatic Soldering Robot for Pcb Soldeing

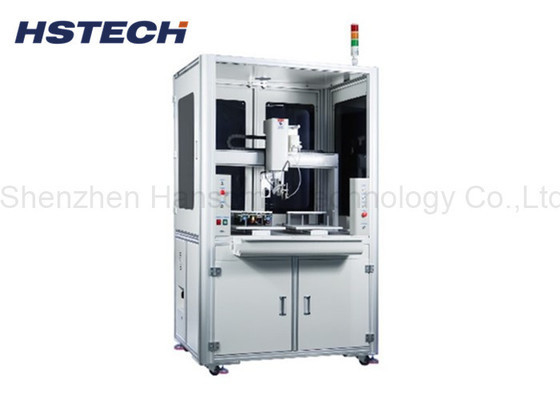

This model automatic soldering machine is the floor standing model soldering robot, different from the desktop soldering machine, it's a more convenient and flexible soldering robot.

This machine adopts the 5 axis working system, with double soldering platform, single soldering iron/tip morving range 500x300x300x100mm.

The machine suitable for many kinds of PCBA welding, automatic soldering robots replace manual welding to improve work efficiency and improve welding quality.

Features:

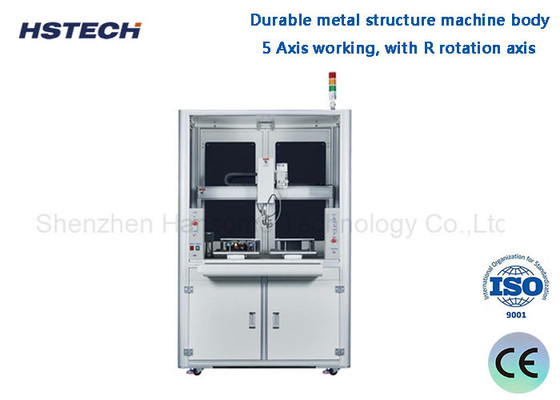

1, Durable metal structure machine body, floor standing model, double platform operation.

2, 5 Axis working, with R rotation axis.

3, 500*300*300mm traveling distance, traveling range can be customized under customer's requirement.

4, Single soldering iron the moving range has many options depends on the product dimension, also can customized to double or tripple double soldering irons.

5, Support many welding method, point welding, drag welding,and other functions.

6, Teach pandent programing, manual setting all the welding points, also support CAD drawing import.

7, Using high quality Taiwan Hiwin brand Linear Guide, ensure the moving precision.

8, The machine adopts Stepper motor and timing belt control.

Automatic welding:
The robot has a fully automatic welding function, which can automatically complete the positioning, feeding, welding and other processes.
Greatly improve production efficiency, reduce manual operation, and achieve high automation.

High-precision welding:
Adopting advanced visual positioning and mechanical arm control technology, it can achieve high-precision solder joint positioning and welding.
The weld quality is stable, greatly reducing the rework rate.

Versatility:
It can be applied to welding operations of various electronic products and circuit boards.
Supports different solder and welding nozzle types, which can be freely configured according to needs.
Can be integrated with the production line system to realize the integration of automated production lines.

Flexibility:
The body size is large, the floor-standing structure is adopted, and the footprint is small.
The working area and operating distance can be flexibly adjusted according to production needs.
Some models have mobile functions and can move freely between production lines.

Intelligent control:
Built-in advanced control system, which can intelligently adjust welding parameters.
Support remote monitoring and data acquisition, convenient production management.
Some models can be used for human-computer interaction through touch screen or computer

Specification:

Main machine configuration:

1, Double soldering Iron, double Y working platform

2, Handheld teach pendant programmer

3, Heating controller

4, Broken tin controller

5, Solder pen assembly

6, Welding tip

7, Tin out components

8, Cleaning box
