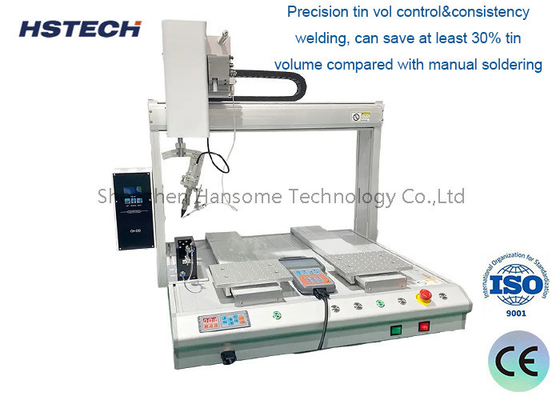

Automatic Four-Axis Soldering Robot PCB Desktop Soldering Machine With High Precision Stepper Motor

Automatic Four-Axis Soldering Robot PCB Desktop Soldering Machine With High Precision Stepper Motor

The dual-platform four-axis automatic soldering machine can perform high-speed drag welding, spot welding, slash welding, etc. on various workpieces. It solves the problems of uneven solder joints and weak soldering caused by manual repetitive welding actions. The biggest advantage is the good consistency of solder joints and stable quality. And can improve efficiency and save manpower. The automatic soldering machine is simple to operate, has high production efficiency, good welding quality, is environmentally friendly and energy-saving, and even beginners can achieve the welding results of skilled workers. This machine uses a simple and fast way to input soldering programs, and its software has powerful editing functions, which can easily and quickly complete program teaching. This machine is widely used in automotive electronics, digital, electronics, electro-acoustic, LCD, circuit boards, branches, electronic regulators, anti-theft wire industry USB welding and other production industries. It is the best automatic soldering robot equipment.

Compact Design:
Desktop Soldering Machine is usually small in size and suitable for use on a desktop or workbench.
Lightweight, easy to move and place in the work area.

Versatility:
Can be used for various welding operations such as electronic equipment, circuit boards, and line welding.
Supports different types of welding tips, suitable for various welding needs.
Some models are equipped with digital temperature control, which can accurately adjust the welding temperature.

Safety:
Equipped with overheating protection function, it can automatically cut off the power supply to prevent accidental damage.
Some models have automatic sleep mode to save energy and reduce power consumption.
Contains anti-scalding design, such as heat-insulated handles, to improve operational safety.

Ease of use:
Simple and intuitive operation interface, novices can also quickly get started.
The welding tip is easy to replace, and the appropriate welding tip type can be selected according to needs.
Some models can be connected to a computer or mobile phone for control and parameter setting.

Wide Application:
Suitable for various welding scenarios such as electronic manufacturing, maintenance, DIY, etc.
Widely used in electronic product assembly, maintenance, and customized production

Features

1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,

3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.

4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

8, With the handheld LCD teaching pendant, the programming is simple,high precision and easy to learn.

Specification
