| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

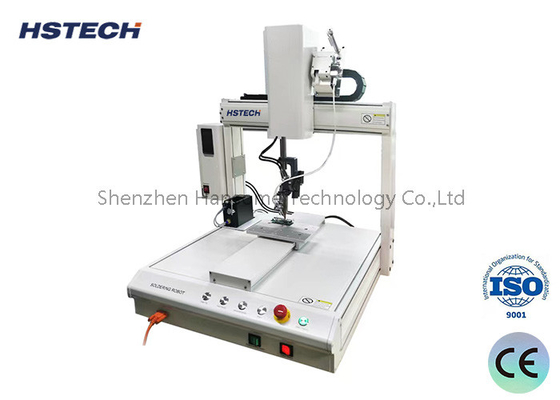

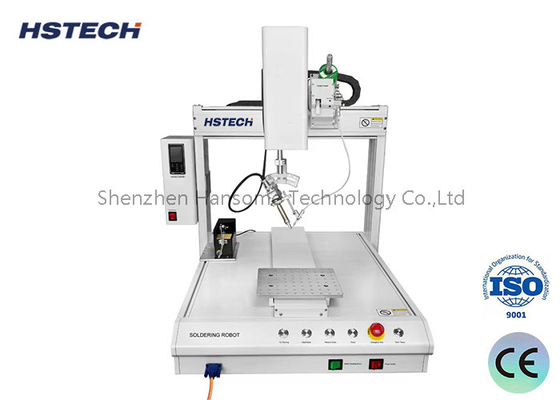

Desktop Automatic Soldering Robot for Industrial Production with Cleaning and Positioning
Introduction
Automatic Soldering Machine is used to replace the traditional manual soldering iron, the machine works automatically by setting the programme. The machine is fixed with customised fixtures, which are required to solder the product and due to the heavier weight of the machine, it ensures accurate soldering. The machine features spot soldering, pull soldering, automatic cleaning and position correction, duplication, alignment and automatic positioning. In addition, the machine is easy to maintain and operate, which greatly improves productivity.
Features
1. Heavy and stable machine body ensures precise welding.
2. The desktop model allows the operator to carefully observe the working process.
3. The machine is equipped with automatic heating and automatic wire feeding function.
4. 4. 4-axis operation with X/Y/Z and R rotary motion for multi-angle welding targets.
5. The hand-held box can set up working procedures, up to 999 procedures can be set up and saved.
6. Programmes can be imported directly point by point and saved manually.
7. The machine has an auto-cleaning function, which can make the soldering process more stable and prolong the service life of the soldering iron.
8. Handheld LCD teaching pendant, programming is easy to learn.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Application
1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
