| Brand Name: | HSTECH |
| Model Number: | HS-700 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

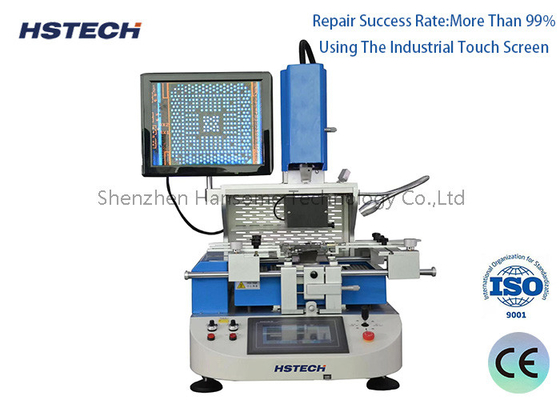

All Brand Mobile Laptop Game Player Motherboard Repair Machine Bga Rework Station
Specification
| Mobile Phone BGA Rework Station | Model:HS-700 |
| Power Supply | AC 100V / 220V±10% 50/60Hz |
| Total power | 2600W |
| Heater power | Top heater 1200W(Max), bottom heater 1200W(Max) |
| Electric material | Driving motor + smart temp. controller + color touch screen |
| Temperature control | high precision K-sensor+ closed loop control + independent temp.controller (the precision can reach ±1℃) |
| Sensor | 1pcs |
| Locating way | V shape PCB support + external universal fixture + laser light for centering and positioning |
| Overall dimension | L450mm*W470mm*H670mm |
| PCB size | Max 140mm*160mm Min 5mm*5mm |
| BGA size | Max 50mm*50mm Min 1mm*1mm |
| Applicable PCB thickness | 0.3 - 5mm |
| Mounting accuracy | ±0.01mm |
| Weight of machine | 30KG |
| Mount chip weight | 150g |
| Working modes | Five: Semi-auto/Manual/Remove/Mount/Weld |
| Usage Repair | chips / phone motherboard etc |
Features
1. 5 work modes
2. 15''HD LCD monitor
3. 7''HD color touch screen
4. stepping motor

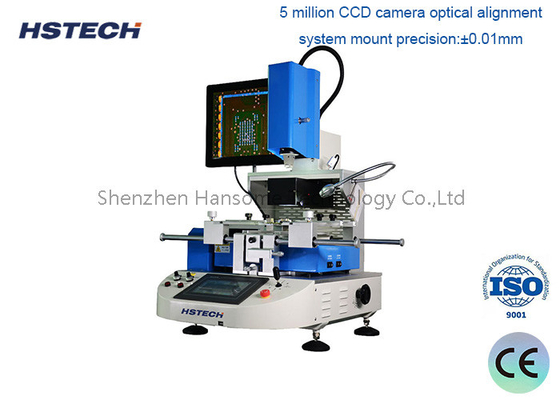

5. CCD color optical alignment system
6.Temperature accuracy within ±1℃
7.Mounting precision within ±0.01mm
8.Repair success rate: 99% +
9. Independent research and development of single-chip control
Advantages
1.Superior safety protection system
Heating device using a double protection mechanism, top/bottom heating wire burned out/failure of the system will automatically alarm, to eliminate the phenomenon of damage to the product due to the failure of the sensor caused by the loss of control of the text.
2.Highly Intelligent
Fully automated function can avoid personnel control errors and achieve high efficiency in the lead-free manufacturing process and the rework of pop-packed devices.
3.High sensitivity
Avoid damage to the PCB main board by the heating head during the operation of the equipment.
