| Brand Name: | HSTECH |
| Model Number: | HS-460FL |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
PCB flipping machine PCB double-sided turnover Machine 180degree PCB INVERTER
Features

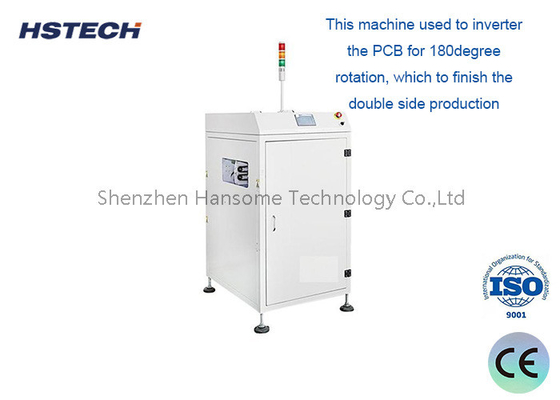

1. This machine is used to invert the PCB and rotate it 180 degrees to complete double-sided production.
2. 2, 4 pitched selection.
3. Touch screen control and Mitsubishi PLC.
4. 3-color light display.

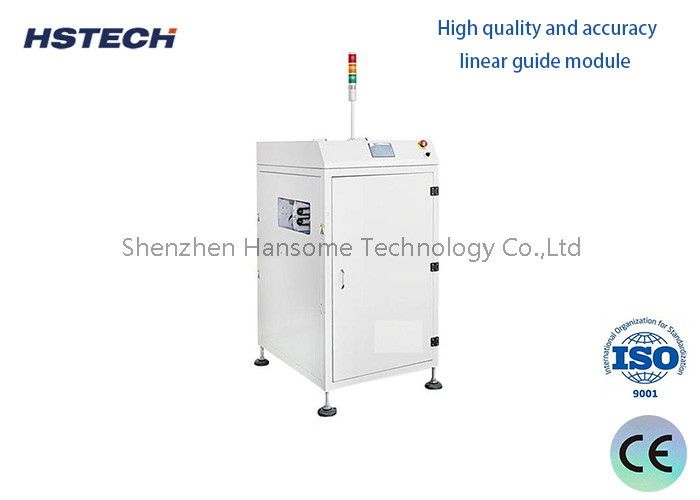

5. High quality and precision linear guide module.
6. Flexible flipping, ball screw can smoothly connect upstream and downstream equipment.
7. All stainless steel body, durable and long-lasting.
8. SMEMA signal.
Specification
| Machine function | 180degree PCB invertering |
| Power supply | AC100-230V, single phase, 50/60Hz |
| Transport belf | ESD 7mm belt |
| PCB dimension | (50*50)-(500*460)mm |
| Air supply | 4-6 bar,max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L-R or R-L (optional) |
| PCB thickness | Min 0.4mm |
| Up/down pitches | 1-4(10mm step) |
| Recycle time | around 20 seconds |
| Communication | SMEMA |
| Machine dimension | 600*900*1200mm |
| Weight | 140kg |
