| Brand Name: | HSTECH |
| Model Number: | HS-460SDT |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

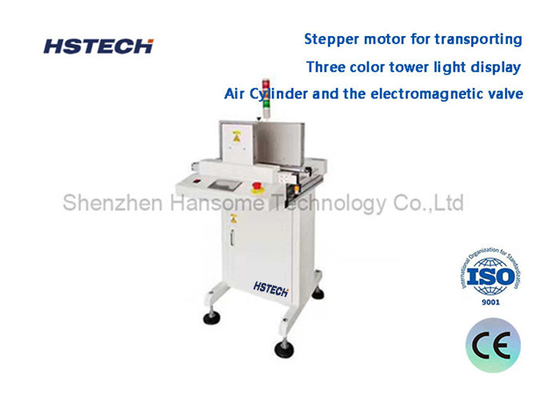

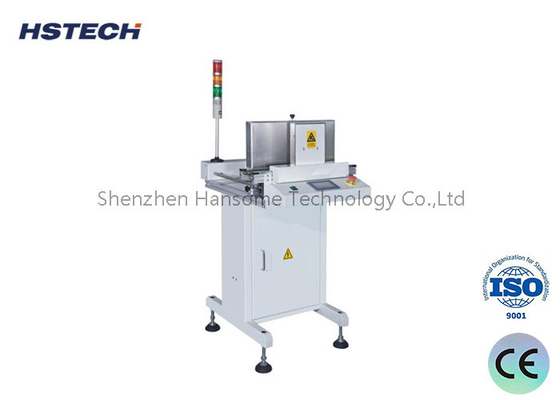

Streamline Your Production with MITSUBISHI PLC Controlled Small Size PCB Handling Equipment
Features
1. Starting point equipment: Used at the starting point of SMT production line, automatically transferring bare boards to the belt conveyor.
2.Control: MITSUBISHI PLC and touch screen control, easy to operate.
3. Material: full stainless steel body, sturdy and durable.
4. Size advantage: compact design, space-saving, easy to move.
5. Colour: computer white, beautiful and generous.
6. Conveyor system: stepping motor drive, ensure stable transmission.
7. Conveyor belt: ESD 7mm flat conveyor belt, anti-static.
8. Status display: three-colour tower light intuitively shows the status of the machine.
9. Pneumatic system: pneumatic cylinder and solenoid valve to achieve precise action.
10. Width adjustment: T-type screwdriver easily adjusted to adapt to different sizes of PCB.
11. Communication interface: equipped with SMEMA interface, easy to integrate into the existing production line.
Specification
| Model | HS-460SDT | |
| PCB Size | 50*50~530*460 | |
| Machine dimension | (L)600*(W)650*(H)1195mm | |
| Usage | Loading the bare boards | |
| PCB thickness | Min 0.4mm | |
| Board loading time | 6s | |
| Air pressure | 4-6bar | |
| Air consumption | max 30L/min | |
| Current | max 300A | |
| Transport direction | L-R or R-L(optional) | |
| Capacity | 10~150pcs | |
| Machine height | standard(900±20mm) | |
| Weight | Approx 200kg | |
