| Brand Name: | HSTECH |
| Model Number: | HS-330BF |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

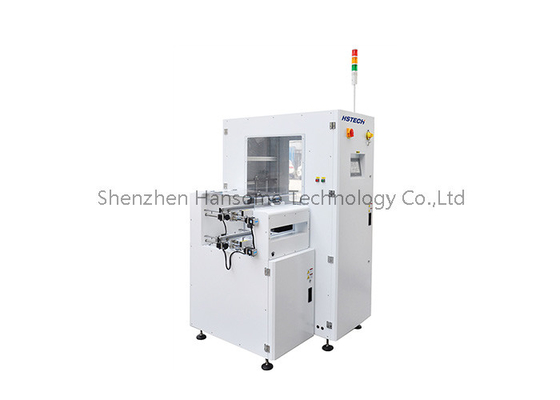

Fast and Smooth PCB Buffering Equipment with Touch Screen Control and Threshold System
Introduction
This PCB buffer machine is an intelligent board buffer device that has 25 layers to store PCBs, each layer has its own signal, and each layer is named with a number. When the downstream machine provides the signal to the layer number, the buffer will receive instructions from the signal machine to the layer, and then automatically select and transport the PCB to the downstream machine.
Features
1. Use a user-friendly soft touch screen control panel.
2. FIFO, LIFO, Loader, unloader, and Reject modes have been selected.

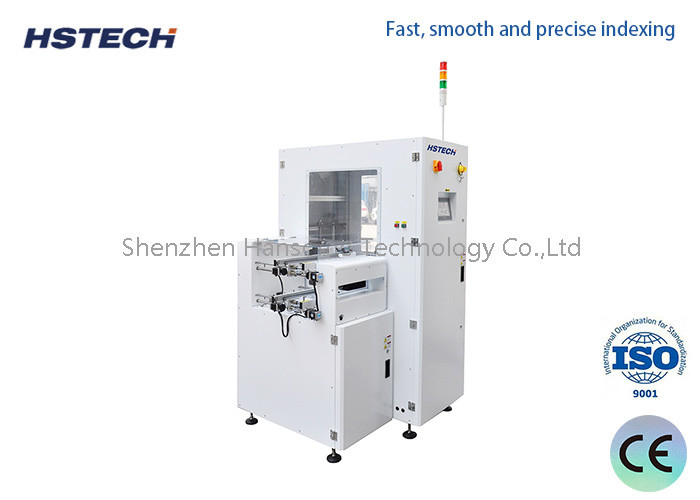

3. Fast, smooth, and accurate indexing.
4. The internal PCB holder can store PCBs, up to a maximum of 25 PCBs.
5. The machine panel will display the NG or OK PCB for each layer.
6. Upper conveyor platform for double checking NG PCB.
7. Provide a threshold system.
8. SMEMA compatibility.
Specification
| MODEL | HS-HC250 | HS-HC250 |
| EFFICIENT PCB SIZE | 50*50~350*250mm | 50*50~455*330mm |
| MACHINE SIZE | 1250*1200*1600mm | 1460*1360*1600mm |
| WEIGHT | 200kg | 230kg |
| MODEL | HS-HC250 | HS-HC250 |
| EFFICIENT PCB SIZE | 50*50~350*250mm | 50*50~455*330mm |
| MACHINE SIZE | 1250*1200*1600mm | 1460*1360*1600mm |
| WEIGHT | 200kg | 230kg |
TECHNICAL PARAMETERS
| FUNCTION | This unit is used as a buffer between SMD machine and Inspection equipment. |
| Transport Height |
910±20mm |
| Transportation Direction | L~R, or R~L |
| Board Collecting | Lifting PCB rack |
| Conveyor Transporting Speed | Adjustable |
| Rail Fixed Side | Front side or rear side |
| Operation Side | Front side |
| PCB Thickness | Min 0.6mm |
| Pitch Selection | 1-4(10mm pitch) |
| Power Supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| PCB Stock Capacity | Max 25pcs |
| Magazine | No |
| Signal | SMEMA |
| Options | Automatic width adjustment |
