| Brand Name: | HSTECH |
| Model Number: | HS-SP-4N |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

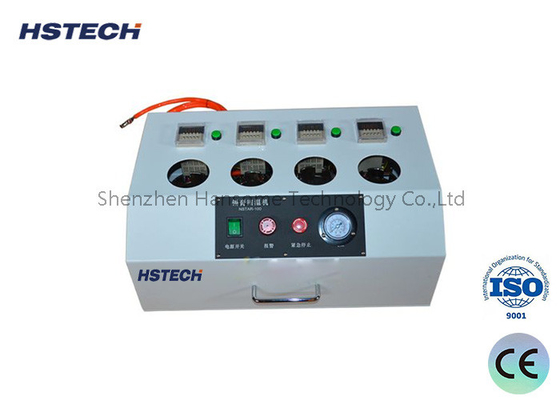

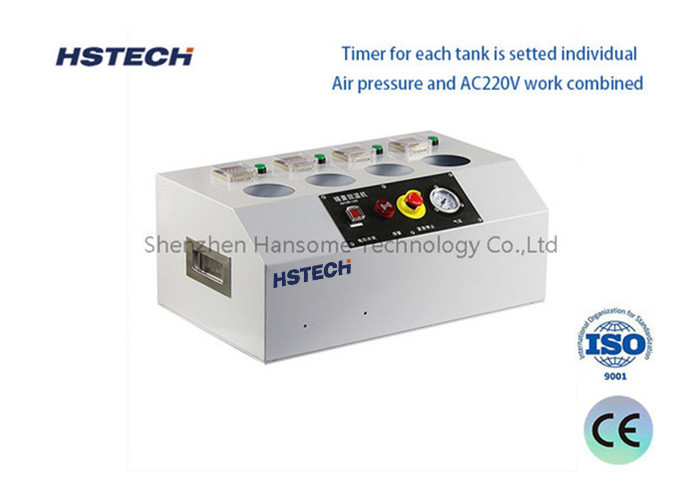

White 4-Tank Solder Paste Machine with Automatic Release Control
Introduction
The Solder Paste Inspection Alignment Machine, also known as the Solder Paste Warm-up Machine or Solder Paste Aging Machine, is equipped with an intelligent timer function that allows precise control of the solder paste warm-up time. This feature greatly reduces the tedious process of recording the time it takes for the solder paste to return to ambient temperature from a refrigerated state. In this way, not only is the temperature of the solder paste effectively managed to ensure that its activity is maintained, but it also guarantees consistent print quality, optimises production schedules and significantly improves productivity.
Features
| Model | HS-SP-4N | |||
| Control system | PLC | |||
| Assemblying parts | Import parts | |||
| Power | AC220V, 50Hz | |||
| Air Pressure | 0.4Mpa | |||
| Placing tank | 4 tanks | |||
| Machine Demension | 500*300*220mm(W*D*H) | |||
| Gross Weight | 16KG | |||
