Quick and Accurate Scanning with UV Laser Marking Machine for PCB Handling Equipment

Quick and Accurate Scanning with UV Laser Marking Machine for PCB Handling Equipment

Introduce

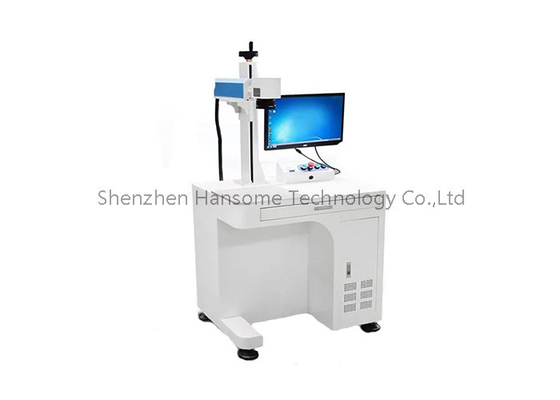

UV Laser Marking Machine is a device that uses ultraviolet laser technology for high-precision marking.

Features:
Ultraviolet laser is used as the marking light source, and the wavelength is usually 355nm.
Capable of high-quality marking on metals, plastics, ceramics and other materials.
The marking process is contactless and does not cause any mechanical damage to the material.
The marking resolution is high, reaching more than 1000 points per millimeter.
It can realize fine text, graphics, QR codes and other markings.
Has good weather resistance and corrosion resistance.

main component:
UV laser: produces high-energy ultraviolet laser.
Optical scanning system: Use mirrors to quickly and accurately scan the laser.
Workbench: Fixed workpiece to be marked, automatic or manual feeding can be selected.
Control system: Control laser, scanning system and other parameters through software.
Protective cover: Isolates laser radiation to ensure safe operation.

Advantage:
The marking quality is high, the resolution is good and the reliability is strong.
No consumables required, low maintenance cost, suitable for mass production.
Programmable control to achieve automated and efficient marking process.
No environmental pollution and meets the requirements of green manufacturing.

​Specification

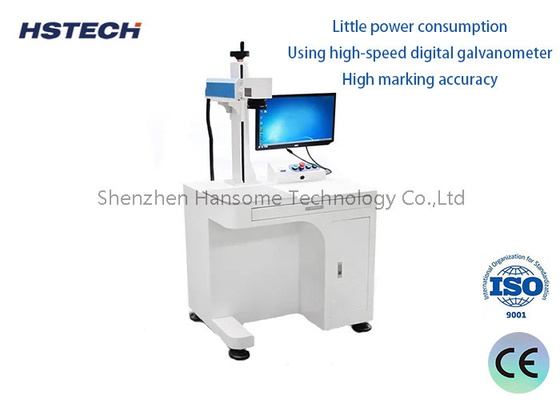

Features

1, 3,5W UV laser output power.

2, Little power consumption, energy consumption is 500 watts.

3. Using high-speed digital galvanometer, it is 2-4 times faster than normal models.

4. High marking accuracy at ±0.003MM, and the marking content coordinates can be fine-tuned.

5. The equipment has stable performance, high positioning accuracy, and can work continuously for 24 hours.

6. The equipment marking software can support AI, PLT, CAD (DXF), CDR, and other formats of vector graphics, and can be imported indirectly or directly.

7. Simple and the marking software can still be upgraded for free after guarantee.

8. Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.

Applications:

Component identification:
UV laser marking machines can accurately mark the model, batch and other information on the surface of electronic components.
This identification helps to trace the source and production information of the components and improve product quality management.

PCB marking:
UV laser marking machines can mark various logos, numbers and other information on printed circuit boards (PCBs).
These markings help with subsequent assembly, testing and repair of PCBs.

Housing/appearance identification:
UV laser marking machines can mark brand, model and other information on the housing or appearance of electronic products.
This permanent marking improves the identity and anti-counterfeiting of products.

QR code printing:
UV laser marking machines can accurately print QR codes on components or PCBs.
QR codes can store rich product information, which is conducive to automatic identification and traceability.

High-precision marking:
UV laser marking machines can achieve extremely high marking accuracy, with a minimum character height of up to 0.1 mm.
This fine marking ensures clear readability of product information.

High-speed marking:
Modern UV laser marking machines have high-speed marking capabilities and can be used with AI plug-in machines to achieve fast batch marking.
This greatly improves product identification efficiency and reduces production bottlenecks.

Non-contact marking:
UV laser marking is a non-contact marking method that does not cause mechanical damage to components or PCBs.
This non-destructive marking helps ensure product reliability.
