| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

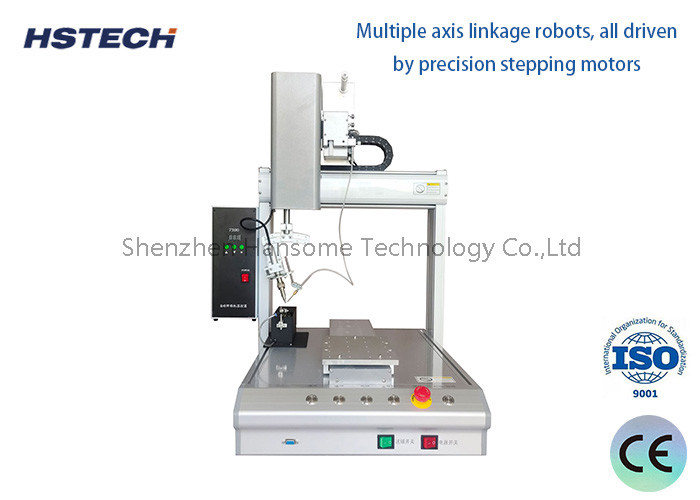

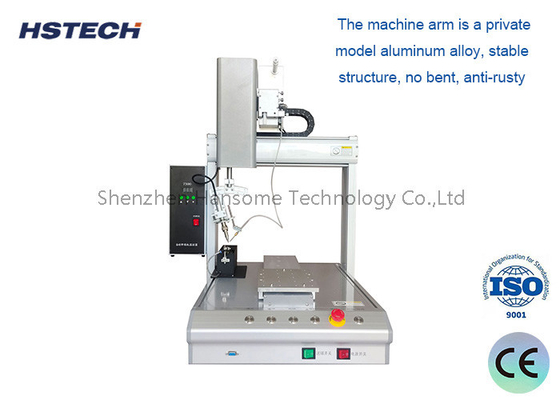

Automatic Soldering Machine for Industrial Production Teach Box Cleaning Positioning
Introduction
The automatic soldering machine is used to replace traditional manual soldering iron, and the machine will work automatically by setting the program. This machine is fixed with customized fixtures and requires welding of products, as the machine is heavy, it can ensure the accuracy of welding. This machine has functions such as spot welding, pull welding, automatic cleaning and position correction, copying, arranging, and automatic positioning. Moreover, the machine is easy to maintain and operate, greatly improving production efficiency.
Features
1. The machine itself is heavy and stable, ensuring the accuracy of welding.
2. Desktop models allow operators to observe the work process very carefully.
3. This machine has automatic heating and welding wire automatic feeding functions.
4. 4-axis operation, X/Y/Z and R rotation movement, achieving multi angle welding objectives.
5. The handheld box can set work programs, and can set and save up to 999 programs.
6. The program can be directly imported and manually saved point by point.
7. This machine has an automatic cleaning function, which can make soldering processing more stable and extend the service life of soldering iron.
8. Handheld LCD teaching pendant, programming is simple and easy to learn.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Application
1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
